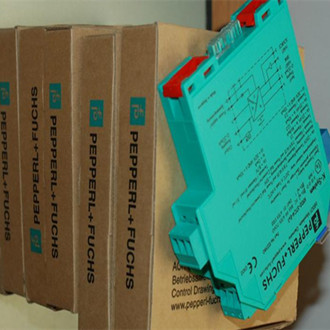

Pepperl Fuchs Switch Amplifier KFD2-SH-Ex1.T K System Isolated Barriers
Description of Pepperl Fuchs Switch Amplifier KFD2-SH-Ex1.T K System Isolated Barriers
Pepperl Fuchs Switch Amplifier KFD2-SH-Ex1.T K System Isolated Barriers
Our most popular intrinsic safety isolated barriers are the flexible DIN rail mounted K-System modules. The K-System intrinsic safety barriers connect easily with our Power Rail assembled in the DIN rail. The use of the Power Rail reduces the wiring by energizing the modules mounted on the DIN rail.
Features of Pepperl Fuchs Switch Amplifier KFD2-SH-Ex1.T K System Isolated Barriers Switch Amplifier KFD2-SH-Ex1.
- 1-channel isolated barrier
- 24 V DC supply
- Input for approved dry contacts or SN/S1N sensors
- Active voltage output
- Relay output
- Fault indication output
- Line fault detection (LFD)
- Up to SIL3 acc. to IEC 61508
- Up to PL d acc. to EN/ISO 13849
Datasheet excerpt: Technical data of Pepperl Fuchs Switch Amplifier KFD2-SH-Ex1.T K System Isolated Barriers
| Product Description of Pepperl Fuchs Switch Amplifier KFD2-SH-Ex1.T K System Isolated Barriers | ||
|---|---|---|
| 24 V DC | ||
| General specifications of Pepperl Fuchs Switch Amplifier KFD2-SH-Ex1.T K System Isolated Barriers | ||
|---|---|---|
| Signal type | Digital Input | |
| Functional safety related parameters of Pepperl Fuchs Switch Amplifier KFD2-SH-Ex1.T K System Isolated Barriers | ||
| Safety Integrity Level (SIL) | SIL 3 | |
| Performance level (PL) | PL d | |
| Supply of Pepperl Fuchs Switch Amplifier KFD2-SH-Ex1.T K System Isolated Barriers | ||
| Connection | terminals 14, 15 | |
| Rated voltage | 20 ... 30 V DC | |
| Ripple | ≤ 10 % | |
| Rated current | ≤ 100 mA | |
| Power dissipation | 1.5 W | |
| Power consumption | max. 1.7 W | |
| Input of Pepperl Fuchs Switch Amplifier KFD2-SH-Ex1.T K System Isolated Barriers | ||
| Connection side | field side | |
| Connection | terminals 4+, 6- | |
| Open circuit voltage/short-circuit current | approx. 8.4 V DC / approx. 11.7 mA | |
| Lead resistance | max. 50 Ω , cable capacitances and inductances must be observed in hazardous areas | |
| Switching point | ||
| Relay de-energized | I < 2.1 mA and I > 5.9 mA , output switched off | |
| Relay energized | 2.8 mA < I < 5.3 mA , output switched on | |
| Response delay | ≤ 1 ms | |
| Output of Pepperl Fuchs Switch Amplifier KFD2-SH-Ex1.T K System Isolated Barriers | ||
| Connection side | control side | |
| Connection | output I: terminals 7+, 8- ; output II: terminals 9, 10 ; output III: terminals 11, 12 | |
| Output I |
active voltage output, short-circuit proof 0-signal: 0 V 1-signal: 20 ... 31 V DC at max. 15 mA fault: 0 V |
|
| Output II | relay | |
| Contact loading |
48 V AC/DC 250 mA |
|
| Mechanical life | ≤ 20 x 106 switching cycles | |
| Output III | relay , fault signal | |
| Contact loading |
48 V AC/DC 250 mA |
|
| Mechanical life | ≤ 20 x 106 switching cycles | |
Pepperl Fuchs Switch Amplifier KFD2-SH-Ex1.T K System Isolated Barriers
Selection Models:
KCD2-SR-Ex1.LB
KCD2-SR-Ex2
KFA6-DU-Ex1.D
KFA6-ER-Ex1.W.LB
KFA6-SOT2-Ex2
KFA6-SR2-Ex1.W
KFA6-SR2-Ex1.W.LB
KFA6-SR2-Ex2.W
KFA6-SR2-Ex2.W.IR
KFD2-DU-Ex1.D
KFD2-ELD-Ex16
KFD2-ER-Ex1.W.LB
KFD2-SH-Ex1
KFD2-SH-Ex1.T.OP
KFD2-SOT3-Ex1.LB
KFD2-SOT3-Ex1.LB.IO
KFD2-SOT3-Ex2
KFD2-SOT3-Ex2.IO
KFD2-SR2-Ex1.W
KFD2-SR2-Ex1.W.LB
KFD2-SR2-Ex2.W
KFD2-SR3-Ex2.2S
KFD2-SRA-Ex4
KFD2-ST3-Ex1.LB
KFD2-ST3-Ex2
KHA6-SH-Ex1
KCD2-SON-Ex1
KCD2-SOT-Ex1.LB
KCD2-SOT-Ex2
KCD2-SOT-Ex2.SP
KCD2-SR-Ex1.LB.SP
KCD2-SR-Ex2.SP
KCD2-ST-Ex1.LB
KCD2-ST-Ex2
KFA5-SOT2-Ex2
KFA5-SR2-Ex1.W
KFA5-SR2-Ex1.W.LB
KFA5-SR2-Ex2.W
KFA5-SR2-Ex2.W.IR
KFD2-SH-Ex1.T
KFD2-SOT3-Ex2.IO-Y1
KCD2-SON-Ex1.R1
KCD2-SON-Ex1.SP
KCD2-SON-Ex2
KCD2-SON-Ex2.R1
KCD2-SON-Ex2.SP
KCD2-SOT-Ex1.LB.SP
KCD2-ST-Ex1.LB.SP
KCD2-ST-Ex2.SP
KFA4-SR2-Ex2.W
KFA5-DU-Ex1.D
KFA4-SR2-Ex1.W
KFA4-SR2-Ex1.W.LB
KFD2-SOT2-Ex1.LB
KFD2-SOT2-Ex1.LB.IO
KFD2-SOT2-Ex2
KFD2-SOT2-Ex2.IO
KFD2-SOT2-Ex2.IO-Y181008
KFD2-SR2-Ex2.2S
KFD2-ST2-Ex1.LB
KFD2-ST2-Ex2
