Pepperl-Fuchs KFD2-STC4-EX1 Safety Barriers KFD2-STC4-EX1 Is

description:Pepperl-Fuchs KFD2-STC4-EX1 Safety Barriers KFD2-STC4-EX1 Isolated Barriers In Stock...
BASIC INFO

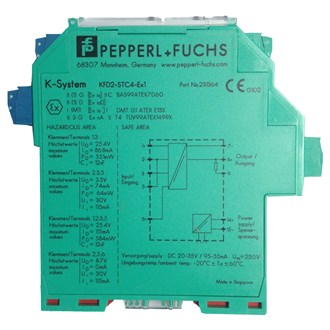

Pepperl-Fuchs KFD2-STC4-EX1 Safety Barriers KFD2-STC4-EX1 Isolated Barriers In Stock





Features of Pepperl-Fuchs KFD2-STC4-EX1 Safety Barriers KFD2-STC4-EX1 Isolated Barriers In Stock


•  1-channel isolated barrier
•  24 V DC supply (Power Rail)
•  Input 2-wire and 3-wire SMART transmitters and 2-wire SMART current sources
•  Output 0/4 mA ... 20 mA
•  Terminals with test points
•  Up to SIL 2 acc. to IEC 61508

Function of
Pepperl-Fuchs KFD2-STC4-EX1 Safety Barriers KFD2-STC4-EX1 Isolated Barriers In Stock

This isolated barrier is used for intrinsic safety applications.
The device supplies 2-wire and 3-wire SMART transmitters in a hazardous area, and can also be used with 2-wire SMART current sources.
It transfers the analog input signal to the safe area as an isolated current value.
Digital signals may be superimposed on the input signal in the hazardous or safe area and are transferred bi-directionally.
If the HART communication resistance in the loop is too low,the internal resistance of 250 Ω between terminals 8 and 9 can be used.
Test sockets for the connection of HART communicators are integrated into the terminals of the device.

Application of
Pepperl-Fuchs KFD2-STC4-EX1 Safety Barriers KFD2-STC4-EX1 Isolated Barriers In Stock

The device supports the following SMART protocols:
• HART
• BRAIN
• Foxboro


Pepperl-Fuchs KFD2-STC4-EX1 Safety Barriers KFD2-STC4-EX1 Isolated Barriers In Stock

Product Description
Input 0/4 mA ... 20 mA
Output 0/4 mA ... 20 mA

General specifications of Pepperl-Fuchs KFD2-STC4-EX1 Safety Barriers KFD2-STC4-EX1 Isolated Barriers In Stock

Signal type Analog input
Functional safety related parameters
Safety Integrity Level (SIL) SIL 2
Supply
Connection Power Rail or terminals 14+, 15-
Rated voltage 20 ... 35 V DC
Ripple within the supply tolerance
Power dissipation 1.4 W
Power consumption 1.8 W
Input
Connection side field side
Connection terminals 1+, 2-, 3 or 5-, 6+
Input signal 0/4 ... 20 mA
Voltage drop ≤ 2.4 V at 20 mA (terminals 5, 6)
Input resistance ≤ 64 Ω terminals 2-, 3 ; ≤ 500 Ω terminals 1+, 3 (250 Ω load)
Available voltage ≥ 16 V at 20 mA terminals 1+, 3
Output
Connection side control side
Connection terminals 7-, 8+, 9
Load 0 ... 800 Ω at 20 mA
Output signal 0/4 ... 20 mA (overload > 25 mA)
Ripple max. 50 µA rms
Transfer characteristics
Deviation at 20 °C (68 °F), 0/4 ... 20 mA
≤ 10 µA incl. calibration, linearity, hysteresis, loads and fluctuations of supply voltage
Frequency range field side into the control side: bandwidth with 0.5 Vpp signal 0 ... 7.5 kHz (-3 dB)
control side into the field side: bandwidth with 0.5 Vpp signal 0.3 ... 7.5 kHz (-3 dB)
Settling time 200 µs
Rise time/fall time 20 µs
Indicators/settings
Display elements LED
Labeling space for labeling at the front
Directive conformity
Electromagnetic compatibility
Directive 2014/30/EU EN 61326-1:2013 (industrial locations)
Conformity
Electromagnetic compatibility NE 21:2011
Degree of protection IEC 60529:2001
Ambient conditions
Ambient temperature -20 ... 60 °C (-4 ... 140 °F)
Mechanical specifications
Degree of protection IP20
Connection screw terminals
Mass approx. 200 g
Dimensions 20 x 124 x 115 mm (0.8 x 4.9 x 4.5 inch) , housing type B2
Mounting on 35 mm DIN mounting rail acc. to EN 60715:2001
Data for application in connection with hazardous areas
EU-Type Examination Certificate BAS 99 ATEX 7060 X
Marking  II (1)G [Ex ia Ga] IIC ,  II (1)D [Ex ia Da] IIIC ,  I (M1) [Ex ia Ma] I
Certificate TÜV 99 ATEX 1499 X
Marking  II 3G Ex nA II T4 [device in zone 2]
Directive conformity
Directive 2014/34/EU EN 60079-0:2012+A11:2013 , EN 60079-11:2012 , EN 60079-15:2010
International approvals
UL approval
Control drawing 116-0428 (cULus)
IECEx approval IECEx BAS 04.0016X
IECEx CML 15.0055X
Approved for [Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I
Ex nA IIC T4 Gc
