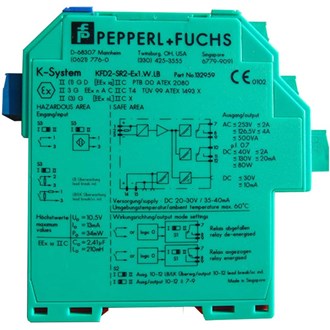

Description of P+F KFD2-SR2-EX1.W Switch Amplifiers KFD2-SR2-EX1.W Safety Barriers In Stock Singapore Origin
The KFD2-SR2-EX2.W is a 2-channel isolated Switch Amplifier for intrinsic safety applications. It transfers digital signals (NAMUR sensors/mechanical contacts) from a hazardous area to a safe area. The proximity sensor or switch controls a form C changeover relay contact for the safe area load. The normal output state can be reversed using switches S1 and S2. Switch S3 is used to enable or disable line fault detection of the field circuit. During an error condition, the relays revert to their de-energized state and the LEDs indicate the fault according to NAMUR NE44. An unique collective error messaging feature is available when used with the power rail system.
Features of P+F KFD2-SR2-EX1.W Switch Amplifiers KFD2-SR2-EX1.W Safety Barriers In Stock Singapore Origin
• 1-channel isolated barrier
General specifications of P+F KFD2-SR2-EX1.W Switch Amplifiers KFD2-SR2-EX1.W Safety Barriers In Stock Singapore Origin | ||
---|---|---|
Signal type | Digital Input | |
Functional safety related parameters of P+F KFD2-SR2-EX1.W Switch Amplifiers KFD2-SR2-EX1.W Safety Barriers In Stock Singapore Origin | ||
Safety Integrity Level (SIL) | SIL 2 | |
Supply of P+F KFD2-SR2-EX1.W Switch Amplifiers KFD2-SR2-EX1.W Safety Barriers In Stock Singapore Origin | ||
Connection | Power Rail or terminals 14+, 15- | |
Rated voltage | 20 ... 30 V DC | |
Ripple | ≤ 10 % | |
Rated current | ≤ 30 mA | |
Power dissipation | 0.7 W | |
Power consumption | < 0.9 W | |
Input of P+F KFD2-SR2-EX1.W Switch Amplifiers KFD2-SR2-EX1.W Safety Barriers In Stock Singapore Origin | ||
Connection side | field side | |
Connection | terminals 1+, 2+, 3- | |
Rated values | acc. to EN 60947-5-6 (NAMUR) | |
Open circuit voltage/short-circuit current | approx. 8 V DC / approx. 8 mA | |
Switching point/switching hysteresis | 1.2 ... 2.1 mA / approx. 0.2 mA | |
Line fault detection | breakage I ≤ 0.1 mA , short-circuit I > 6 mA | |
Pulse/Pause ratio | min. 20 ms / min. 20 ms | |
Output of P+F KFD2-SR2-EX1.W Switch Amplifiers KFD2-SR2-EX1.W Safety Barriers In Stock Singapore Origin | ||
Connection side | control side | |
Connection | terminals 7, 8, 9 | |
Output | signal ; relay | |
Contact loading | 253 V AC/2 A/cos φ > 0.7; 126.5 V AC/4 A/cos φ > 0.7; 40 V DC/2 A resistive load | |
Minimum switch current | 2 mA / 24 V DC | |
Energized/De-energized delay | approx. 20 ms / approx. 20 ms | |
Mechanical life | 107 switching cycles | |
Transfer characteristics of P+F KFD2-SR2-EX1.W Switch Amplifiers KFD2-SR2-EX1.W Safety Barriers In Stock Singapore Origin | ||
Switching frequency | < 10 Hz |
