BASIC INFO

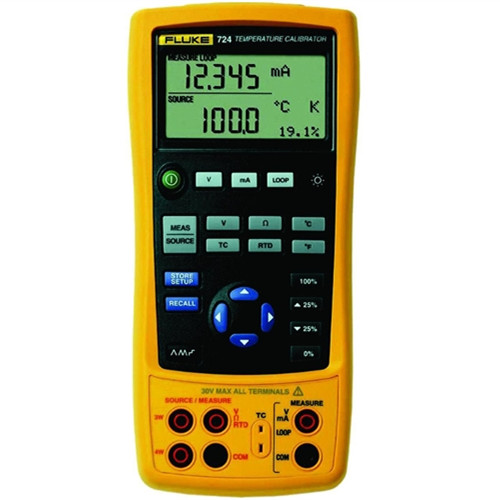

Fluke 724 Temperature Calibrator Fluke 724 Digital Multifunction Process Calibrator
Product overview: Fluke 724 Temperature Calibrator Fluke 724 Digital Multifunction Process Calibrator
Fluke 724 Temperature Calibrator offers everything you need to troubleshoot and calibrate temperature
The Fluke 724 is powerful yet easy-to-use temperature calibrator that sources and measures 10 thermocouple types, and 7 RTD types, plus volts and ohms. It also measures mA while supplying loop power. You can use it to test and calibrate almost any temperature instrument so you only have to carry one tool to expertly test all the temperature sensors and transmitters in your plant.
The Fluke 724 even handles high-speed pulsed RTD circuits and provides loop power. The dual-line measure/source display lets you source temperature and view loop current at the same time. And with its simple, "no menus controls, you'll be able to get all your testing done faster.
Other useful features: Fluke 724 Temperature Calibrator Fluke 724 Digital Multifunction Process Calibrator
* A bright backlight to enable you to work in poor light
* Large battery capacity with four AA alkaline batteries
* Easy to access battery door for quick changes
Other useful features: Fluke 724 Temperature Calibrator Fluke 724 Digital Multifunction Process Calibrator
* Performs fast linearity tests with 25% and 100% steps
* Executes remote tests with auto step and auto ramp
* Powers transmitters during test using loop power supply with simultaneous mA measurement
* Features a compact, streamlined shape that makes it easy to carry
* Offers a rugged, reliable design that stands up to field use
Fluke 724 Temperature Calibrator Fluke 724 Digital Multifunction Process Calibrator
The new Fluke 724 Temperature Calibrator is a powerful yet easy-to-use calibrator. Use the measure and source functions to test and calibrate almost any temperature instrument
Overwiew of Fluke 724 Temperature Calibrator Fluke 724 Digital Multifunction Process Calibrator
The Fluke 724: everything you need to troubleshoot and calibrate temperature.
Now you can carry one tool to expertly test all the temperature sensors and transmitters in your plant.
The Fluke 724 is the master’s answer to temperature calibration. The Fluke 724 can measure and source 10 thermocouple types and 7 RTD types, plus volts and ohms.
The Fluke 724 even handles high-speed pulsed RTD circuits and provides loop power.
The dual line measure/source display lets you source temperature and view loop current at the same time.
With its simple, “no menus controls, the Fluke 724 is easy to operate, too.
Features of Fluke 724 Temperature Calibrator Fluke 724 Digital Multifunction Process Calibrator
* Easy to read dual display lets you view input and output simultaneously
* Measure RTDs, thermocouples, ohms, and volts to test sensors and transmitters
* Source/simulate thermocouples, RTDs, volts, and ohms to calibrate transmitters
* Perform fast linearity tests with 25% and 100% steps
* Execute remote tests with auto step and auto ramp
* Power transmitters during test using loop power supply with simultaneous mA measurement
* Store frequently-used test setups for later use
* Compact, streamlined shape makes it easy to carry
* Rugged, reliable design stands up to field use
* Backlight lets you work in poor light
* Large battery capacity of four AA cells
* Battery door for easy changes
Fluke 724 Temperature Calibrator Fluke 724 Digital Multifunction Process Calibrator
Fluke 724 Temperature Calibrator Fluke 724 Digital Multifunction Process Calibrator
We are specialized in intelligent instruments, including : control system, transmitters, flow meters,sensors, recorders, analyzers, control valves, controllers, PLC's, etc.
We mainly supply Yokogawa, Emerson, Rosemount,Honeywell,Siemens, ABB,FLUKE, Endress+Hauser,Schneider Electric,Moeller,FUJI,Omron, Pepperl+Fuchs, Yaskawa,Norgren,CHINT,Hach,Weidmuller,Phoenix,MTL,SMC,Testo,Rockwell,ASCO,Parker,Mitsubishi, Hima, Hirschmann,Festo,GE, CISCO,Auma,IFM,GM,
Turck,Bently Nevada,MOXA etc.
Why do you choose us?
1. 100% original brand product, 100% quality assurance.
If you find a fake product. Please contact us without hesitation! We afford the shipment cost! We send you a new product asking zero cent.
2. Varied payment methods.
We adopt L/C, D/A, D/P, T/T, and other methods. If you can not trust us , you can choose to pay it via Aliexpress! 100% make your money safe!
Packaging: Imported with original packaging or standard export packing.Customize design is acceptable.
Shipping: By Express(EMS,DHL,UPS,TNT, FEDEX, ARAMEX), By Air, By Sea.
Contact:
HONGKONG XIEYUAN TECH CO., LIMITED
Email:becky@hkxytech.com Web:www.hkxytech.com
Mobile:+86-15972186287(Whatsapp & Wechat)
Fluke 724 Temperature Calibrator Fluke 724 Digital Multifunction Process Calibrator
| Measurement Accuracy of Fluke 724 Temperature Calibrator Fluke 724 Digital Multifunction Process Calibrator | ||
| Voltage DC | 30.000 V | 0.02% + 2 counts (upper display) |
| 20.000 V | 0.02% + 2 counts (lower display) | |
| 100.00 mV | 0.02% + 2 counts | |
| -10.00 mV to 75.00 mV | 0.025% + 1 count (via TC connector) | |
| Current DC | 24.000 mA | 0.02% + 2 counts |
| Resistance | 0.0 to 400.0 Ω | 0.1 Ω (4-wire), 0.15 Ω (2- and 3-wire) |
| 401 to 1500 Ω | 0.5 Ω (4-wire), 1 Ω (2- and 3-wire) | |
| 1500 to 3200 Ω | 1 Ω (4-wire), 1.5 Ω (2- and 3-wire) | |
| Source Accuracy of Fluke 724 Temperature Calibrator Fluke 724 Digital Multifunction Process Calibrator | ||
| Voltage DC | 100.00 mV | 0.02% + 2 counts |
| 10.000 V | 0.02% + 2 counts | |
| -10.00 mV to 75.00 mV | 0.025 % + 1 count (via TC connector) | |
| Resistance | 15.0 to 400.0 Ω | 0.15 Ω (exc. current 0.15 to 0.5 mA), 0.1 Ω (exc. current 0.5 to 2 mA) |
| 401 to 1500 Ω | 0.5 Ω (excitation current 0.05 to 0.8 mA) | |
| 1500 to 3200 Ω | 1 Ω (excitation current 0.05 to 0.4 mA) | |
| RTDs and Thermocouples of Fluke 724 Temperature Calibrator Fluke 724 Digital Multifunction Process Calibrator | ||
| Measure accuracy | NI-120 | 0.2°C |
| PT-100 (385) | 0.33°C | |
| PT-100 (393) | 0.3°C | |
| PT-100 (JIS) | 0.3°C | |
| PT-200 (385) | 0.2°C | |
| PT-500 (385) | 0.3°C | |
| PT-1000 (385) | 0.2°C | |
| Resolution | 0.1°C | |
| J | 0.7°C | |
| K | 0.8°C | |
| T | 0.8°C | |
| E | 0.7°C | |
| R | 1.8°C | |
| S | 1.5°C | |
| B | 1.4°C | |
| L | 0.7°C | |
| U | 0.75°C | |
| N | 0.9°C | |
| Resolution | J, K, T, E, L, N, U: 0.1°C, 0.1°F B, R, S: 1°C, 1°F | |
| XK | 0.6°C | |
| BP | 1.2°C | |
| Source accuracy | NI-120 | 0.2°C |
| PT-100 (385) | 0.33°C | |
| PT-100 (393) | 0.3°C | |
| PT-100 (JIS) | 0.3°C | |
| PT-200 (385) | 0.2°C | |
| PT-500 (385) | 0.3°C | |
| PT-1000 (385) | 0.2°C | |
| Resolution | 0.1°C | |
| Accuracy stated for 4-wire measurement. | ||
| J | 0.7°C | |
| K | 0.8°C | |
| T | 0.8°C | |
| E | 0.7°C | |
| R | 1.4°C | |
| S | 1.5°C | |
| B | 1.4°C | |
| L | 0.7°C | |
| U | 0.75°C | |
| N | 0.9°C | |
| Resolution | J, K, T, E, L, N, U: 0.1°C, B, R, S: 1°C | |
| XK | 0.6°C | |
| BP | 1.2°C | |
| Specifications of Fluke 724 Temperature Calibrator Fluke 724 Digital Multifunction Process Calibrator | ||
| Ramp functions | Source functions | Voltage, current, resistance, frequency, temperature |
| Ramps | Slow ramp, Fast ramp, 25% step-ramp | |
| Loop power function | Voltage | 24 V |
| Accuracy | 10% | |
| Maximum current | 22 mA, short circuit protected | |
| Step functions | Source functions | Voltage, current, resistance, frequency, temperature |
| Steps | 25% of range, 100% of range | |
| Environmental Specifications of Fluke 724 Temperature Calibrator Fluke 724 Digital Multifunction Process Calibrator | ||
| Operating temperature | -10°C to 55°C | |
| Storage temperature | -20°C to 71°C | |
| Humidity (without condensation) | 90% | 10°C to 30°C |
| 75% | 30°C to 40°C | |
| 45% | 40°C to 50°C | |
| 35% | 50°C to 55°C | |
| Safety Specifications of Fluke 724 Temperature Calibrator Fluke 724 Digital Multifunction Process Calibrator | ||
| Safety rating | CSA C22.2 No. 1010.1:1992 | |
| EMC | EN50082-1:1992 and EN55022:1994 Class B | |
| Mechanical and General Specifications of Fluke 724 Temperature Calibrator Fluke 724 Digital Multifunction Process Calibrator | ||
| Size | 96 x 200 x 47 mm | |
| Weight | 650 g | |
| Batteries | Four AA alkaline batteries | |
| Warranty | Three years | |
| Battery life | 25 hours typical | |
| Shock and vibration | Random, 2 G, 5-500 Hz | |
