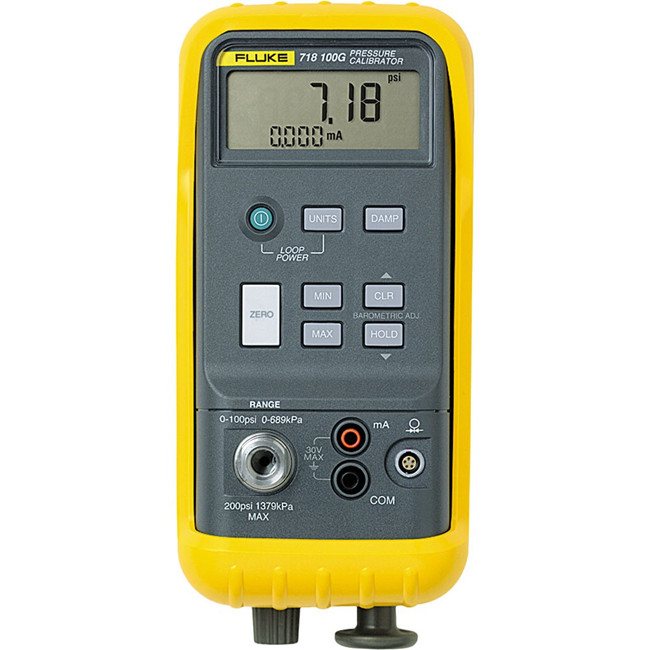

Fluke 718 Pressure Calibrator provides a total pressure calibration solution for transmitters, gauges and switches. This compact pressure calibration solution is about a third of the size of comparable instruments and weighs just one kilogram (two pounds). The unique easy to clean pump helps protect the pump from damage and provides the ability to service the pump without disassembly, even in the field.
Features and Benefits of Fluke 718Ex 718 300G Pressure Calibrator Fluke 718 300G Portable Press Calibration
• Pressure Source and Milliamp Measurement to calibrate and maintain almost any pressure device
• Integrated pump is easily cleaned when accidently exposed to fluids that reduces cost of ownership and repairs and enables servicing the pump in the field
• Error % calculation for quicker pass/fail decision making in the field
• Best in class mA accuracy of 0.015% for better measurement confidence and workload coverage
•Min/Max/Hold to capture changing measurements
• Switch test feature for quicker and more accurate pressure switch testing
30G:- Range: -12 psi to 30 psi, (-850 mbar to 2 bar, -85 to 206.84 kPa) • For measuring overpressure and vacuum with an internal sensor
• Suitable for non-corrosive gases
• Pressure / vacuum hand pump with fine adjustment and relief valve (helps to protect the pump)
• Select from numerous technical units for the pressure
•Simultaneous measurement of pressure and current for simple P/I or I/P testing
• 24 V loop supply
• Zero and damp functions
• Test functions for push button switch: set, reset, dead zone
• New 1 and 300 PSI pressure ranges mean fewer extra tools required
• 1, 30, 100 & 300 PSI ranges now available
Standards of Fluke 718Ex 718 300G Pressure Calibrator Fluke 718 300G Portable Press Calibration
CSA C22.2 no. 1010.1: 1992, IEC 61010, CAT I 30V
718, holster, TL75 test leads, AC72 crocodile clips, two 9 V batteries, instruction manual
Fluke 718 300G Pressure Calibrator, -12-300 psi provides a total pressure calibration solution for transmitters, gauges and switches. This compact pressure calibration solution is compact, and weighs just one kilogram (two pounds). The unique, easy-to-clean pump helps protect the pump from damage and provides the ability to service the pump without disassembly, even in the field.
Product Features of Fluke 718Ex 718 300G Pressure Calibrator Fluke 718 300G Portable Press Calibration
• Range: -12 psi to 300 psi (-850 mbar to 20 bar, -85 to 2068.42 kPa)
• Resolution: 0.01 psi, 1 mbar, 0.1 kPa
• Over pressure: 375 psi 25 bar
• Accuracy: 0.025% full scale
• Functions: Zero, min/max, hold, damp
• Pressure source and milliamp measurement to calibrate and maintain almost any pressure device
• Integrated pump is easy to cleaned, even when exposed to fluids that reduces cost of ownership and repairs
• Field serviceable pump
• Error % calculation for quicker pass/fail decision making
• Best in class mA accuracy of 0.015% for better measurement confidence and workload coverage
• Min/Max/Hold captures changing measurements
• Switch test feature for quicker and more accurate pressure switch testing
Included of of Fluke 718Ex 718 300G Pressure Calibrator Fluke 718 300G Portable Press Calibration
1 - Test Lead Set
1 - Alligator Test Clip Set
1 - Protective Yellow Holster with Test Lead Storage
1 - 9V Battery
1 - NIST Calibration Report and Data
1 - User Manual
Fluke 718Ex 718 300G Pressure Calibrator Fluke 718 300G Portable Press Calibration
Model Description
718 100US 718 100US Pressure Calibrator, -12 to 100 psi, .025% Accuracy
718 1G 718 1G Pressure Calibrator, -1 to 1 psi, .025% Accuracy
718 30US 718 30US Pressure Calibrator, -12 to 30 psi, .025% Accuracy
Fluke 718Ex 718 300G Pressure Calibrator Fluke 718 300G Portable Press Calibration
| FLK 718 30G Fluke 718Ex 718 300G Pressure Calibrator Fluke 718 300G Portable Press Calibration | |
| Range | -12 psi to 30 psi, (-850 mbar to 2 bar, -85 to 206.84 kPa) |
| Resolution | 0.001 psi, 0.1 mbar, 0.01 kPa |
| FLK 718 100G Fluke 718Ex 718 300G Pressure Calibrator Fluke 718 300G Portable Press Calibration | |
| Range | -12 psi to 100 psi, (-850 mbar to 7 bar, -85 to 689.48 kPa) |
| Resolution | 0.01 psi, 0.1 mbar, 0.01 kPa |
| FLK 718 300G Fluke 718Ex 718 300G Pressure Calibrator Fluke 718 300G Portable Press Calibration | |
| Range | -12 psi to 300 psi, (-850 mbar to 20 bar, -85 to 2068.42 kPa) |
| Resolution | 0.01 psi, 1 mbar, 0.1 kPa |
| FLK 718 series via 700 Series Pressure Modules | |
| Range | 29 pressure modules, 0 – 1 inH20 to 10,000 psi, 2.5 mbar to 700 bar. Over pressure per pressure module specs |
| Accuracy | To 0.025% of full span, per pressure module specs |
| FLK 718 Series Via Built in Pump | |
| Range | -12 psi or -850 mbar to full scale Supported Pressure Units; psi, inH20 (4°C), inH20 (20°C), cmH20 (4°C), cmH20 (20°C), bar, mbar, kPa, inHg, mmHg, kg/cm |
| Loop power range | 24 V DC |
| Accuracy | ±10% |
| mA Measure | |
| Range | 0 mA to 24 mA |
| Resolution | 0.001 mA |
| Accuracy | 0.015% + 1 count |
| General Specifications | |
| Maximum voltage | 30 volts (non-operating) |
| Temperature | -40°C to 60°C |
| Operating temperature | -10°C to 55°C |
| Relative humidity | 95% (10°C to 30°C); 75% (30°C to 40°C); 45% (40°C to 50°C); 35% (50°C to 55°C) |
| Shock | 1 M drop test |
| Battery life | 4 to 20 hours typical, depending on functions used |
| Warranty | Three years (one year on pressure pump in Fluke 718) |
| Display |
LCD, 5 digit pressure and current simultaneous |
