BASIC INFO
Fluke 718 300G Pressure Calibrator 20bar
The complete solution to pressure calibration.
The Fluke 718 Pressure Calibrator provides a total pressure calibration solution for transmitters, gauges and switches. This compact pressure calibration solution is about a third of the size of comparable instruments and weighs just one kilogram (two pounds). The unique easy to clean pump helps protect the pump from damage and provides the ability to service the pump without disassembly, even in the field.
The Fluke 718 300G Pressure Calibrator, -12-300 psi provides a total pressure calibration solution for transmitters, gauges and switches. This compact pressure calibration solution is compact, and weighs just one kilogram (two pounds). The unique, easy-to-clean pump helps protect the pump from damage and provides the ability to service the pump without disassembly, even in the field.
Product Features of Fluke 718 300G Pressure Calibrator 20bar：
• Range: -12 psi to 300 psi (-850 mbar to 20 bar, -85 to 2068.42 kPa)
• Resolution: 0.01 psi, 1 mbar, 0.1 kPa
• Over pressure: 375 psi 25 bar
• Accuracy: 0.025% full scale
• Functions: Zero, min/max, hold, damp
• Pressure source and milliamp measurement to calibrate and maintain almost any pressure device
• Integrated pump is easy to cleaned, even when exposed to fluids that reduces cost of ownership and repairs
• Field serviceable pump
• Error % calculation for quicker pass/fail decision making
• Best in class mA accuracy of 0.015% for better measurement confidence and workload coverage
• Min/Max/Hold captures changing measurements
• Switch test feature for quicker and more accurate pressure switch testing
Features and Benefits of Fluke 718 300G Pressure Calibrator 20bar
• Pressure Source and Milliamp Measurement to calibrate and maintain almost any pressure device
• Integrated pump is easily cleaned when accidently exposed to fluids that reduces cost of ownership and repairs and enables servicing the pump in the field
• Error % calculation for quicker pass/fail decision making in the field
• Best in class mA accuracy of 0.015% for better measurement confidence and workload coverage
• Min/Max/Hold to capture changing measurements
• Switch test feature for quicker and more accurate pressure switch testing
30G:- Range: -12 psi to 30 psi, (-850 mbar to 2 bar, -85 to 206.84 kPa) • For measuring overpressure and vacuum with an internal sensor
• Suitable for non-corrosive gases
• Pressure / vacuum hand pump with fine adjustment and relief valve (helps to protect the pump)
• Select from numerous technical units for the pressure
• Simultaneous measurement of pressure and current for simple P/I or I/P testing
• 24 V loop supply
• Zero and damp functions
• Test functions for push button switch: set, reset, dead zone
• New 1 and 300 PSI pressure ranges mean fewer extra tools required
• 1, 30, 100 & 300 PSI ranges now available
Standards of Fluke 718 300G Pressure Calibrator 20bar
CSA C22.2 no. 1010.1: 1992, IEC 61010, CAT I 30V
Supplied with

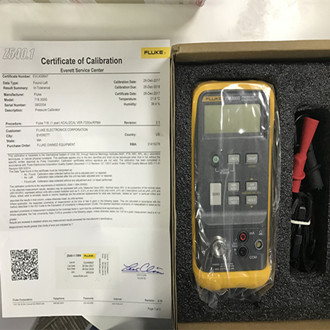

Fluke 718, holster, TL75 test leads, AC72 crocodile clips, two 9 V batteries, instruction manual
Included of Fluke 718 300G Pressure Calibrator 20bar
1 - Test Lead Set
1 - Alligator Test Clip Set
1 - Protective Yellow Holster with Test Lead Storage
1 - 9V Battery
1 - NIST Calibration Report and Data
1 - User Manual
Fluke 718 300G Pressure Calibrator 20bar
Model Description
718 100US Fluke 718 100US Pressure Calibrator, -12 to 100 psi, .025% Accuracy
718 1G Fluke 718 1G Pressure Calibrator, -1 to 1 psi, .025% Accuracy
718 30US Fluke 718 30US Pressure Calibrator, -12 to 30 psi, .025% Accuracy
