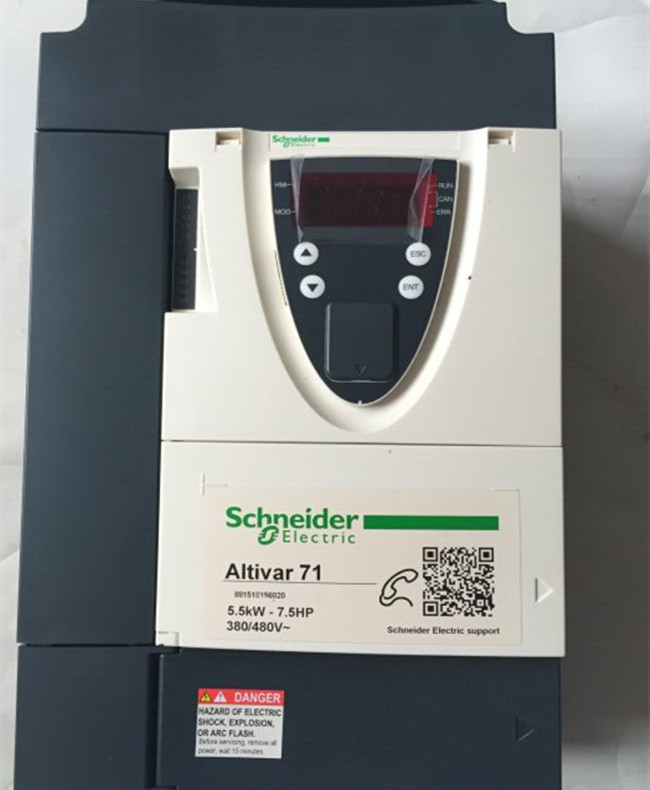

Schneider ATV71HD37N4 Altivar 71 Variable Frequency Drives V

description:Schneider ATV71HD37N4 Altivar 71 Variable Frequency Drives VFD ATV71HD37N4 Variable Speed Drives...
BASIC INFO
Schneider ATV71HD37N4 Altivar 71 Variable Frequency Drives VFD ATV71HD37N4 Variable Speed Drives







ATV71HD37N4Z is a kW, drive from the Altivar 71 range and is manufactured for constant torque applications using three-phase motors. Northern Industrial are specialists in supporting users of Telemecanique variable speed drives, including the ATV71HD37N4Z, and provide fast and reliable spares and repairs.


Main of Schneider ATV71HD37N4 Altivar 71 Variable Frequency Drives VFD ATV71HD37N4 Variable Speed Drives
range of product
Altivar 71

product or component type
Variable speed drive

product specific application
Complex, high-power machines

component name
ATV71

motor power kW
37 kWat 380...480 V 3 phases

motor power hp
50 hpat 380...480 V 3 phases

motor cable length
<= 328.08 ft (100 m) Shielded cable
<= 656.17 ft (200 m) Unshielded cable

power supply voltage
380...480 V (- 15...10 %)

Phase
3 phases

line current
69 Afor 480 V 3 phases 37 kW / 50 hp
84 Afor 380 V 3 phases 37 kW / 50 hp

EMC filter
Integrated

assembly style
With heat sink

apparent power
55.3 kVAat 380 V 3 phases 37 kW / 50 hp

prospective line Isc
<= 22 kA, 3 phases

nominal output current
65 Aat 2.5 kHz 460 V 3 phases 37 kW / 50 hp
79 Aat 2.5 kHz 380 V 3 phases 37 kW / 50 hp

maximum transient current
130 Afor 2 s 3 phases 37 kW / 50 hp
118.5 Afor 60 s 3 phases 37 kW / 50 hp

output frequency
0.1...599 Hz

nominal switching frequency
2.5 kHz

switching frequency
1...16 kHz adjustable
2.5...16 kHz with derating factor

asynchronous motor control profile
ENA (Energy adaptation) system for unbalanced loads
Flux vector control (FVC) with sensor (current vector)
Sensorless flux vector control (SFVC) (voltage or current vector)
Voltage/frequency ratio (2 or 5 points)

type of polarization
No impedance Modbus


Complementary of Schneider ATV71HD37N4 Altivar 71 Variable Frequency Drives VFD ATV71HD37N4 Variable Speed Drives
product destination
Asynchronous motors
Synchronous motors

power supply voltage limits
323...528 V

power supply frequency
50...60 Hz (- 5...5 %)

power supply frequency limits
47.5...63 Hz

speed range
1...100 asynchronous motor in open-loop mode, without speed feedback
1...50 synchronous motor in open-loop mode, without speed feedback
1...1000 asynchronous motor in closed-loop mode with encoder feedback

speed accuracy
+/- 0.01 % of nominal speed 0.2 Tn to Tn torque variation in closed-loop mode with encoder feedback
+/- 10 % of nominal slip 0.2 Tn to Tn torque variation without speed feedback

torque accuracy
+/- 15 % in open-loop mode, without speed feedback
+/- 5 % in closed-loop mode with encoder feedback

transient overtorque
220 % of nominal motor torque +/- 10 %for 2 s
170 % of nominal motor torque +/- 10 %for 60 s every 10 minutes

braking torque
<= 150 % with braking or hoist resistor
30 % without braking resistor

synchronous motor control profile
Vector control without speed feedback

regulation loop
Adjustable PI regulator

motor slip compensation
Adjustable
Automatic whatever the load
Not available in voltage/frequency ratio (2 or 5 points)
Suppressable

diagnostic
1 LED red presence of drive voltage

output voltage
<= power supply voltage

insulation
Electrical between power and control

type of cable for mounting in an enclosure
With a NEMA Type1 kit: 3-strand UL 508 cableat 104 °F (40 °C), copper 75 °C PVC
With an IP21 or an IP31 kit: 3-strand IEC cableat 104 °F (40 °C), copper 70 °C PVC
Without mounting kit: 1-strand IEC cableat 113 °F (45 °C), copper 70 °C PVC
Without mounting kit: 1-strand IEC cableat 113 °F (45 °C), copper 90 °C XLPE/EPR

electrical connection
AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR terminal 2.5 mm² / AWG 14
L1/R, L2/S, L3/T, U/T1, V/T2, W/T3, PC/-, PO, PA/+, PA, PB terminal 50 mm² / AWG 1/0

tightening torque
L1/R, L2/S, L3/T, U/T1, V/T2, W/T3, PC/-, PO, PA/+, PA, PB 106.19 lbf.in (12 N.m) / 102.2 lb.in
AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR 5.31 lbf.in (0.6 N.m)

supply
Internal supply for reference potentiometer (1 to 10 kOhm), 10.5 V DC +/- 5 %, <= 10 mAfor overload and short-circuit protection
Internal supply, 24 V DC, voltage limits 21...27 V, <= 200 mAfor overload and short-circuit protection

analogue input number
2

analogue input type
AI1-/Al1+ bipolar differential voltage +/- 10 V DC, input voltage 24 V max, resolution 11 bits + sign
AI2 software-configurable current 0...20 mA, impedance 242 Ohm, resolution 11 bits
AI2 software-configurable voltage 0...10 V DC, input voltage 24 V max, impedance 30000 Ohm, resolution 11 bits

input sampling time
AI1-/Al1+ 2 ms, +/- 0.5 ms analog input(s)
Al2 2 ms, +/- 0.5 ms analog input(s)
LI1...LI5 2 ms, +/- 0.5 ms discrete input(s)
LI6 (if configured as logic input) 2 ms, +/- 0.5 ms discrete input(s)

response time
<= 100 ms in STO (Safe Torque Off)
AO1 2 ms, tolerance +/- 0.5 ms analog output(s)
R1A, R1B, R1C 7 ms, tolerance +/- 0.5 ms discrete output(s)
R2A, R2B 7 ms, tolerance +/- 0.5 ms discrete output(s)

absolute accuracy precision
AI1-/Al1+ +/- 0.6 % for a temperature variation 60 °C
AI2 +/- 0.6 % for a temperature variation 60 °C
AO1 +/- 1 % for a temperature variation 60 °C

linearity error
AI1-/Al1+, AI2 +/- 0.15 % of maximum value
AO1 +/- 0.2 %

analogue output number
1

analogue output type
AO1 software-configurable current 0...20 mA, impedance 500 Ohm, resolution 10 bits
AO1 software-configurable logic output 10 V <= 20 mA
AO1 software-configurable voltage 0...10 V DC, impedance 470 Ohm, resolution 10 bits

discrete output number
2

discrete output type
R1A, R1B, R1C configurable relay logic NO/NC, electrical durability 100000 cycles
R2A, R2B configurable relay logic NO, electrical durability 100000 cycles

minimum switching current
Configurable relay logic 3 mAat 24 V DC

maximum switching current
R1, R2 on resistive load, 5 Aat 250 V AC, cos phi = 1,
R1, R2 on resistive load, 5 Aat 30 V DC, cos phi = 1,
R1, R2 on inductive load, 2 Aat 250 V AC, cos phi = 0.4,
R1, R2 on inductive load, 2 Aat 30 V DC, cos phi = 0.4,

discrete input number
7

discrete input type
LI6: switch-configurable 24 V DC with level 1 PLC, impedance: 3500 Ohm
PWR: safety input 24 V DC, impedance: 1500 Ohm conforming to ISO 13849-1 level d
LI1...LI5: programmable 24 V DC with level 1 PLC, impedance: 3500 Ohm
LI6: switch-configurable PTC probe 0...6, impedance: 1500 Ohm

discrete input logic
LI1...LI5 positive logic (source), < 5 V (state 0), > 11 V (state 0)
LI1...LI5 negative logic (sink), > 16 V (state 0), < 10 V (state 0)
LI6 (if configured as logic input) positive logic (source), < 5 V (state 0), > 11 V (state 0)
LI6 (if configured as logic input) negative logic (sink), > 16 V (state 0), < 10 V (state 0)

acceleration and deceleration ramps
Automatic adaptation of ramp if braking capacity exceeded, by using resistor
Linear adjustable separately from 0.01 to 9000 s
S, U or customized

braking to standstill
By DC injection

insulation resistance
> 1 mOhm at 500 V DC for 1 minute to earth

frequency resolution
Analog input 0.024/50 Hz
Display unit 0.1 Hz

communication port protocol
CANopen
Modbus

connector type
1 RJ45 Modbus on front face
1 RJ45 Modbus on terminal
Male SUB-D 9 on RJ45 CANopen

physical interface
2-wire RS 485 Modbus

transmission frame
RTU Modbus

data format
8 bits, 1 stop, even parity Modbus on front face
8 bits, odd even or no configurable parity Modbus on terminal

number of addresses
1...247 Modbus
1...127 CANopen

method of access
Slave CANopen

marking
CE

operating position
Vertical +/- 10 degree

height
21.65 in (550 mm)

depth
10.47 in (266 mm)

width
9.45 in (240 mm)

product weight
81.57 lb(US) (37 kg)

functionality
Full

specific application
Other applications
