Schneider ATV71HD30N4Z Variable Speed Drive Altivar 71 30kW

description:Schneider ATV71HD30N4Z Variable Speed Drive Altivar 71 30kW...
BASIC INFO

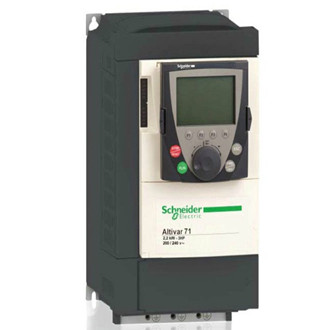

Schneider ATV71HD30N4Z Variable Speed Drive Altivar 71 30kW





The Altivar 71 inverter / variable speed drive series from Schneider Electric is a high-end AC drive for constant torque applications using three-phase motors from 0.37kW to 400kW at 380/460 VAC.

The Altivar 71 defines ease of use for variable speed AC drives and simplifies complex applications with customizable capability. Reliable, expandable and easy to control, it saves time and money for machine builders, panel builders and system inegrators.

Schneider ATV71HD30N4Z Variable Speed Drive Altivar 71 30kW

Variable speed drives
synchronous motors
asynchronous motors

0.37 (0.5 HP) … 45 KW (60 HP)/200 – 240V
0.75 (1 HP) … 75 KW (100 HP)/380 – 480V
1.5 (2 HP) … 90 KW (100 HP)/500 – 690V

Product Description of Schneider ATV71HD30N4Z Variable Speed Drive Altivar 71 30kW

Range:
  • Variable speed drives for 3-ph asynchronous motors:
  • 0.37KW to 5.5 KW , 200…240V 1-ph power supply - IP21
  • 0.75KW to 500.0 KW , 380...500 V 3-ph power supply - IP21
  • 0.75KW to 90 KW , 380...480 V 3-ph power supply - IP54

Presentation of Schneider ATV71HD30N4Z Variable Speed Drive Altivar 71 30kW
  • 200... 240 V single-phase
  • 200... 240 V / 380... 690 V 3-phase, 50/60 Hz
  • Speed regulation by flux vector control with or without sensor
  • Speed range: from 1 to 1 000 in closed loop mode with encoder feedback, from 1 to 100 in open loop mode
  • Graphic terminal: plain text, navigation button, configurable function keys, "Simply Start" menu ...
  • Protection of motor and of drive
  • "Power Removal ", ATEX safety functions
  • More than 150 functions available: PID regulator, brake control suited to travelling, hoisting and slewing movements...
  • Integrated EMC filter class A
  • Integrated Modbus and CANopen
  • I/O extension cards, interface cards for encoder
  • Communication cards: Fipio, Ethernet, Modbus Plus, Profibus DP, DeviceNet, Uni-Telway, INTERBUS
  • Controller Inside programmable card



Make way for evolution of Schneider ATV71HD30N4Z Variable Speed Drive Altivar 71 30kW

  • Unique range up to 630 kW, exceptional performance, advanced functions...
  • Open to all communication networks, applications, users... Altivar 71 provides ingenious solutions for all your particular requirements.

High performance applications (constant torque) of Schneider ATV71HD30N4Z Variable Speed Drive Altivar 71 30kW
  • Material handling
  • Hoisting
  • Wood machines
  • Process machines
  • Textile machines
  • Packaging

Altivar 71 LHP:  Schneider ATV71HD30N4Z Variable Speed Drive Altivar 71 30kW
  • ATV71H075N4
  • ATV71H075N4Z
  • ATV71HU15N4
  • ATV71HU15N4Z
  • ATV71HU22N4
  • ATV71HU22N4Z
  • ATV71HU30N4
  • ATV71HU30N4Z
  • ATV71HU40N4
  • ATV71HU40N4Z
  • ATV71HU55N4
  • ATV71HU55N4Z
  • ATV71HU75N4
  • ATV71HU75N4Z
  • ATV71HD11N4
  • ATV71HD11N4Z
  • ATV71HD15N4
  • ATV71HD15N4Z
  • ATV71HD18N4
  • ATV71HD18N4Z

Altivar 71 MHP:  Schneider ATV71HD30N4Z Variable Speed Drive Altivar 71 30kW
  • ATV71HD22N4
  • ATV71HD22N4Z
  • ATV71HD30N4
  • ATV71HD30N4Z
  • ATV71HD37N4
  • ATV71HD37N4Z
  • ATV71HD45N4
  • ATV71HD55N4
  • ATV71HD75N4
  • ATV71HD75N4Z

Altivar 71 HHP:   Schneider ATV71HD30N4Z Variable Speed Drive Altivar 71 30kW
  • ATV71HD90N4
  • ATV71HC11N4
  • ATV71HC13N4
  • ATV71HC16N4
  • ATV71HC20N4
  • ATV71HC25N4
  • ATV71HC28N4
  • ATV71HC31N4
  • ATV71HC40N4
  • ATV71HC50N4


Main of Schneider ATV71HD30N4Z Variable Speed Drive Altivar 71 30kW
range of product
Altivar 71

product or component type
Variable speed drive

product specific application
Complex, high-power machines

component name
ATV71

motor power kW
30 kW at 380...480 V 3 phases

motor power hp
40 hp at 380...480 V 3 phases

motor cable length
<= 200 m Unshielded cable
<= 100 m Shielded cable

power supply voltage
380...480 V (- 15...10 %)

network number of phases
3 phases

line current
56 A for 480 V 3 phases 30 kW / 40 hp
66 A for 380 V 3 phases 30 kW / 40 hp

EMC filter
Integrated

assembly style
With heat sink

variant
Without remote graphic terminal

apparent power
43.4 kVA at 380 V 3 phases 30 kW / 40 hp

prospective line Isc
<= 22 kA, 3 phases

nominal output current
52 A at 4 kHz 460 V 3 phases 30 kW / 40 hp
66 A at 4 kHz 380 V 3 phases 30 kW / 40 hp

maximum transient current
109 A for 2 s 3 phases 30 kW / 40 hp
99 A for 60 s 3 phases 30 kW / 40 hp

output frequency
0.1...599 Hz

nominal switching frequency
4 kHz

switching frequency
1...16 kHz adjustable
4...16 kHz with derating factor

asynchronous motor control profile
Flux vector control (FVC) with sensor (current vector)
ENA (Energy adaptation) system for unbalanced loads
Voltage/frequency ratio (2 or 5 points)
Sensorless flux vector control (SFVC) (voltage or current vector)

type of polarization
No impedance for Modbus

Complementary of Schneider ATV71HD30N4Z Variable Speed Drive Altivar 71 30kW
product destination
Synchronous motors
Asynchronous motors

power supply voltage limits
323...528 V

power supply frequency
50...60 Hz (- 5...5 %)

power supply frequency limits
47.5...63 Hz

speed range
1...100 for asynchronous motor in open-loop mode, without speed feedback
1...50 for synchronous motor in open-loop mode, without speed feedback
1...1000 for asynchronous motor in closed-loop mode with encoder feedback

speed accuracy
+/- 0.01 % of nominal speed for 0.2 Tn to Tn torque variation in closed-loop mode with encoder feedback
+/- 10 % of nominal slip for 0.2 Tn to Tn torque variation without speed feedback

torque accuracy
+/- 15 % in open-loop mode, without speed feedback
+/- 5 % in closed-loop mode with encoder feedback

transient overtorque
220 % of nominal motor torque +/- 10 % for 2 s
170 % of nominal motor torque +/- 10 % for 60 s every 10 minutes

braking torque
<= 150 % with braking or hoist resistor
30 % without braking resistor

synchronous motor control profile
Vector control without speed feedback

regulation loop
Adjustable PI regulator

motor slip compensation
Adjustable
Suppressable
Automatic whatever the load
Not available in voltage/frequency ratio (2 or 5 points)

diagnostic
1 LED red presence of drive voltage

output voltage
<= power supply voltage

insulation
Electrical between power and control

type of cable for mounting in an enclosure
With a NEMA Type1 kit : 3-strand UL 508 cable at 40 °C, copper 75 °C PVC
With an IP21 or an IP31 kit : 3-strand IEC cable at 40 °C, copper 70 °C PVC
Without mounting kit : 1-strand IEC cable at 45 °C, copper 70 °C PVC
Without mounting kit : 1-strand IEC cable at 45 °C, copper 90 °C XLPE/EPR

electrical connection
AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR terminal 2.5 mm² / AWG 14
L1/R, L2/S, L3/T, U/T1, V/T2, W/T3, PC/-, PO, PA/+, PA, PB terminal 50 mm² / AWG 1/0

tightening torque
L1/R, L2/S, L3/T, U/T1, V/T2, W/T3, PC/-, PO, PA/+, PA, PB 12 N.m / 102.2 lb.in
AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR 0.6 N.m

supply
Internal supply for reference potentiometer (1 to 10 kOhm), 10.5 V DC +/- 5 %, <= 10 mA for overload and short-circuit protection
Internal supply, 24 V DC, voltage limits 21...27 V, <= 200 mA for overload and short-circuit protection

analogue input number
2

analogue input type
AI1-/Al1+ bipolar differential voltage +/- 10 V DC, input voltage 24 V max, resolution 11 bits + sign
AI2 software-configurable current 0...20 mA, impedance 242 Ohm, resolution 11 bits
AI2 software-configurable voltage 0...10 V DC, input voltage 24 V max, impedance 30000 Ohm, resolution 11 bits

input sampling time
AI1-/Al1+ 2 ms, +/- 0.5 ms for analog input(s)
Al2 2 ms, +/- 0.5 ms for analog input(s)
LI1...LI5 2 ms, +/- 0.5 ms for discrete input(s)
LI6 (if configured as logic input) 2 ms, +/- 0.5 ms for discrete input(s)

response time
<= 100 ms in STO (Safe Torque Off)
AO1 2 ms, tolerance +/- 0.5 ms for analog output(s)
R1A, R1B, R1C 7 ms, tolerance +/- 0.5 ms for discrete output(s)
R2A, R2B 7 ms, tolerance +/- 0.5 ms for discrete output(s)

absolute accuracy precision
AI1-/Al1+ +/- 0.6 % for a temperature variation 60 °C
AI2 +/- 0.6 % for a temperature variation 60 °C
AO1 +/- 1 % for a temperature variation 60 °C

linearity error
AI1-/Al1+, AI2 +/- 0.15 % of maximum value
AO1 +/- 0.2 %

analogue output number
1

analogue output type
AO1 software-configurable current 0...20 mA, impedance 500 Ohm, resolution 10 bits
AO1 software-configurable logic output 10 V <= 20 mA
AO1 software-configurable voltage 0...10 V DC, impedance 470 Ohm, resolution 10 bits

discrete output number
2

discrete output type
R1A, R1B, R1C configurable relay logic NO/NC, electrical durability 100000 cycles
R2A, R2B configurable relay logic NO, electrical durability 100000 cycles

minimum switching current
Configurable relay logic 3 mA at 24 V DC

maximum switching current
R1, R2 on resistive load, 5 A at 250 V AC, cos phi = 1,
R1, R2 on resistive load, 5 A at 30 V DC, cos phi = 1,
R1, R2 on inductive load, 2 A at 250 V AC, cos phi = 0.4,
R1, R2 on inductive load, 2 A at 30 V DC, cos phi = 0.4,

discrete input number
7

discrete input type
LI6 : switch-configurable 24 V DC with level 1 PLC, impedance: 3500 Ohm
PWR : safety input 24 V DC, impedance: 1500 Ohm conforming to ISO 13849-1 level d
LI1...LI5 : programmable 24 V DC with level 1 PLC, impedance: 3500 Ohm
LI6 : switch-configurable PTC probe 0...6, impedance: 1500 Ohm

discrete input logic
LI1...LI5 positive logic (source), < 5 V (state 0), > 11 V (state 0)
LI1...LI5 negative logic (sink), > 16 V (state 0), < 10 V (state 0)
LI6 (if configured as logic input) positive logic (source), < 5 V (state 0), > 11 V (state 0)
LI6 (if configured as logic input) negative logic (sink), > 16 V (state 0), < 10 V (state 0)

acceleration and deceleration ramps
Linear adjustable separately from 0.01 to 9000 s
Automatic adaptation of ramp if braking capacity exceeded, by using resistor
S, U or customized

braking to standstill
By DC injection

protection type
Drive against exceeding limit speed
Drive against input phase loss
Drive break on the control circuit
Drive input phase breaks
Drive line supply overvoltage
Drive line supply undervoltage
Drive overcurrent between output phases and earth
Drive overheating protection
Drive overvoltages on the DC bus
Drive short-circuit between motor phases
Drive thermal protection
Motor motor phase break
Motor power removal
Motor thermal protection

insulation resistance
> 1 mOhm at 500 V DC for 1 minute to earth

frequency resolution
Analog input 0.024/50 Hz
Display unit 0.1 Hz

communication port protocol
CANopen
Modbus

connector type
1 RJ45 for Modbus on front face
1 RJ45 for Modbus on terminal
Male SUB-D 9 on RJ45 for CANopen

physical interface
2-wire RS 485 for Modbus

transmission frame
RTU for Modbus

transmission rate
20 kbps, 50 kbps, 125 kbps, 250 kbps, 500 kbps, 1 Mbps for CANopen
4800 bps, 9600 bps, 19200 bps, 38.4 Kbps for Modbus on terminal
9600 bps, 19200 bps for Modbus on front face

data format
8 bits, 1 stop, even parity for Modbus on front face
8 bits, odd even or no configurable parity for Modbus on terminal

number of addresses
1...247 for Modbus
1...127 for CANopen

method of access
Slave for CANopen

marking
CE

operating position
Vertical +/- 10 degree

height
550 mm

depth
266 mm

width
240 mm

product weight
37 kg

option card
CC-Link communication card
Controller inside programmable card
DeviceNet communication card
Ethernet/IP communication card
Fipio communication card
I/O extension card
Interbus-S communication card
Interface card for encoder
Modbus Plus communication card
Modbus TCP communication card
Modbus/Uni-Telway communication card
Overhead crane card
Profibus DP communication card
Profibus DP V1 communication card

Environment of Schneider ATV71HD30N4Z Variable Speed Drive Altivar 71 30kW
noise level
64 dB conforming to 86/188/EEC

dielectric strength
3535 V DC between earth and power terminals
5092 V DC between control and power terminals

electromagnetic compatibility
Conducted radio-frequency immunity test conforming to IEC 61000-4-6 level 3
Electrical fast transient/burst immunity test conforming to IEC 61000-4-4 level 4
Electrostatic discharge immunity test conforming to IEC 61000-4-2 level 3
Radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3 level 3
Voltage dips and interruptions immunity test conforming to IEC 61000-4-11
1.2/50 µs - 8/20 µs surge immunity test conforming to IEC 61000-4-5 level 3

standards
IEC 60721-3-3 class 3S2
UL Type 1
EN 61800-3 environments 2 category C3
EN 61800-3 environments 1 category C3
EN 55011 class A group 2
IEC 60721-3-3 class 3C1
EN/IEC 61800-5-1
EN/IEC 61800-3

product certifications
NOM 117
CSA
UL
C-Tick

pollution degree
2 conforming to EN/IEC 61800-5-1
3 conforming to UL 840

IP degree of protection
IP20 on upper part without blanking plate on cover conforming to EN/IEC 60529
IP20 on upper part without blanking plate on cover conforming to EN/IEC 61800-5-1
IP21 conforming to EN/IEC 60529
IP21 conforming to EN/IEC 61800-5-1
IP41 on upper part conforming to EN/IEC 60529
IP41 on upper part conforming to EN/IEC 61800-5-1
IP54 on lower part conforming to EN/IEC 60529
IP54 on lower part conforming to EN/IEC 61800-5-1

vibration resistance
1.5 mm peak to peak (f = 3...13 Hz) conforming to EN/IEC 60068-2-6
1 gn (f = 13...200 Hz) conforming to EN/IEC 60068-2-6

shock resistance
15 gn for 11 ms conforming to EN/IEC 60068-2-27

relative humidity
5...95 % without condensation conforming to IEC 60068-2-3
5...95 % without dripping water conforming to IEC 60068-2-3

ambient air temperature for operation
-10...50 °C without derating

ambient air temperature for storage
-25...70 °C

operating altitude
<= 1000 m without derating
1000...3000 m with current derating 1 % per 100 m


We are specialized in intelligent instruments, including : control system, transmitters, flow meters,sensors, recorders, analyzers, control valves, controllers, PLC's, etc.

We mainly supply Yokogawa ,Honeywell,Siemens,ABB,FLUKE,Endress+Hauser,Schneider Electric,Moeller,FUJI,Omron,Pepperl+Fuchs,Hima,Yaskawa, Norgren, Hach, Weidmuller ,Phoenix,MTL,Testo etc.

Why choose us?

1. 100% original product, 100% quality assurance.
If you find a fake. Please contact us without hesitation! We afford the shipment cost! We send you a new product asking zero cent!

2. Varied payment methods.
We adopt T/T, western union and paypal. If you can not trust us , you can choose to pay it via Aliexpress! 100% make your money safe!

3.SHIPPING:
We can shipping all over the world.via DHL,UPS,Fedex,TNT and EMS etc., the packaging is very safe and strong. if you have any special needs,please notify me.
It will take 3 to 7days to reach in your hands.

Packaging:
Imported with original packaging or standard export packing.Customize design is acceptable.

Contact:

HONGKONG XIEYUAN TECH CO., LIMITED
Email:becky@hkxytech.com   Web:www.hkxytech.com
Mobile:+86-15972186287(Whatsapp & Wechat)



Previous: Next:Schneider ATV71HD37N4 Altivar 71 Variable Frequency Drives V
 Footer begin -->
