Schneider ATV320U04M2C Variable Speed Drives ATV320 Altivar

description:Schneider ATV320U04M2C Variable Speed Drives ATV320 Altivar Machine...
BASIC INFO

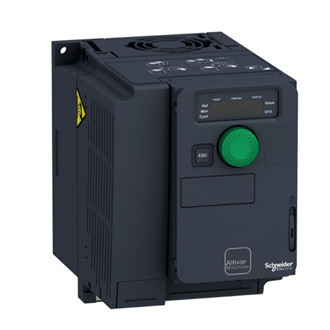

Schneider ATV320U04M2C Variable Speed Drives ATV320 Altivar Machine








Main of Schneider ATV320U04M2C Variable Speed Drives ATV320 Altivar Machine
range of product
Altivar Machine ATV320

product or component type
Variable speed drive

product specific application
Complex machines

device short name
ATV320

format of the control block
Compact

product destination
Synchronous motors
Asynchronous motors

EMC filter
Class C2 EMC filter integrated

IP degree of protection
IP20 conforming to EN/IEC 61800-5-1

degree of protection
UL type 1 with UL type 1 conformity kit

type of cooling
Fanless

network number of phases
1 phase

[Us] rated supply voltage
200...240 V (- 15...10 %)

supply frequency
50...60 Hz (- 5...5 %)

motor power kW
0.37 kW for heavy duty

motor power hp
0.5 hp for heavy duty

line current
5.2 A at 200 V for heavy duty
4.3 A at 240 V for heavy duty

prospective line Isc
1 kA

apparent power
1 kVA at 240 V for heavy duty

continuous output current
3.3 A at 4 kHz for heavy duty

maximum transient current
5 A during 60 s for heavy duty

asynchronous motor control profile
Flux vector control without sensor, standard
Voltage/frequency ratio, 2 points
Voltage/frequency ratio, 5 points
Voltage/frequency ratio - Energy Saving, quadratic U/f
Flux vector control without sensor - Energy Saving

synchronous motor control profile
Vector control without sensor

speed drive output frequency
0.1...599 Hz

nominal switching frequency
4 kHz

switching frequency
4...16 kHz with current derating
2...16 kHz adjustable

safety function
STO (safe torque off) SIL 3
SS1 (safe stop 1)
SMS (safe maximum speed)
SLS (safe limited speed)
GDL (guard door locking)

communication port protocol
Modbus
CANopen

optional communication modules
Communication module: CANopen daisy chain RJ45
Communication module: CANopen SUB-D 9
Communication module: CANopen open style terminal block
Communication module: EtherCAT RJ45
Communication module: DeviceNet
Communication module: Ethernet/IP
Communication module: Profibus DP V1
Communication module: Profinet
Communication module: Ethernet Powerlink

Complementary of Schneider ATV320U04M2C Variable Speed Drives ATV320 Altivar Machine
variant
Standard version

output voltage
<= power supply voltage

permissible temporary current boost
1.5 x In during 60 s for heavy duty

speed range
1...100 with asynchronous motor in open-loop mode

speed accuracy
+/- 10 % of nominal slip 0.2 Tn to Tn

torque accuracy
+/- 15 %

transient overtorque
170...200 % of nominal motor torque

braking torque
<= 170 % with braking resistor during 60 s

regulation loop
Adjustable PID regulator

motor slip compensation
Adjustable 0...300 %
Automatic whatever the load
Not available in voltage/frequency ratio (2 or 5 points)

acceleration and deceleration ramps
S
Ramp switching
CUS
Deceleration ramp adaptation
U
Deceleration ramp automatic stop DC injection
Linear

braking to standstill
By DC injection

protection type
Drive: thermal protection
Drive: overcurrent between output phases and earth
Drive: input phase breaks
Drive: overheating protection
Drive: short-circuit between motor phases

frequency resolution
Display unit: 0.1 Hz
Analog input: 0.012/50 Hz

electrical connection
Control, screw terminal: 0.5...1.5 mm² AWG 20...AWG 16
Motor/braking resistor, screw terminal: 2.5...4 mm² AWG 14...AWG 12
Power supply, screw terminal: 2.5...4 mm² AWG 14...AWG 12

connector type
1 RJ45 for Modbus/CANopen on control terminal

physical interface
2-wire RS 485 for Modbus

transmission frame
RTU for Modbus

transmission rate
4.8, 9.6, 19.2, 38.4 kbit/s for Modbus
50 kbps, 125 kbps, 250 kbps, 500 kbps, 1 Mbps for CANopen

data format
8 bits, configurable odd, even or no parity for Modbus

type of polarization
No impedance for Modbus

number of addresses
1...247 for Modbus
1...127 for CANopen

method of access
Slave for CANopen

supply
Internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC (+/- 5 %) current <= 10 mA (overload and short-circuit protection)

local signalling
1 LED green for CANopen run
1 LED red for CANopen error
1 LED red for drive fault

width
72 mm

height
143 mm
188 mm with EMC plate

depth
138 mm

product weight
1 kg

analogue input number
3

analogue input type
Voltage (AI1): 0...10 V DC, impedance 30000 Ohm, resolution 10 bits
Bipolar differential voltage (AI2): +/- 10 V DC, impedance 30000 Ohm, resolution 10 bits
Current (AI3): 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration), impedance 250 Ohm, resolution 10 bits

discrete input number
7

discrete input type
Programmable (sink/source) (DI1...DI4): 24...30 V DC: level 1 PLC
Programmable as pulse input 20 kpps (DI5): 24...30 V DC: level 1 PLC
Switch-configurable PTC probe (DI6): 24...30 V DC
Safe torque off (STO): 24...30 V DC, impedance 1500 Ohm

discrete input logic
Negative logic (sink): : DI1...DI6, > 19 V (state 0) < 13 V (state 1)
Positive logic (source): : DI1...DI6, < 5 V (state 0) > 11 V (state 1)

analogue output number
1

analogue output type
Software-configurable current (AQ1): 0...20 mA, impedance 800 Ohm, resolution 10 bits
Software-configurable voltage (AQ1): 0...10 V, impedance 470 Ohm, resolution 10 bits

sampling duration
Analog input (AI1, AI2, AI3): 2 ms
Analog output (AQ1): 2 ms

accuracy
Analog input AI1, AI2, AI3: +/- 0.2 % for a temperature of -10...60 °C
Analog input AI1, AI2, AI3: +/- 0.5 % for a temperature of 25 °C
Analog output AQ1: +/- 1 % for a temperature of 25 °C
Analog output AQ1: +/- 2 % for a temperature of -10...60 °C

linearity error
Analog input (AI1, AI2, AI3): +/- 0.2...0.5 % of maximum value
Analog output (AQ1): +/- 0.3 %

discrete output number
3

discrete output type
Configurable relay logic NO/NC (R1A, R1B, R1C): electrical durability 100000 cycles
Configurable relay logic NO (R2A, R2B): electrical durability 100000 cycles
Logic (LO)

refresh time
Logic input (DI1...DI6): 8 ms (+/- 0.7 ms)
Relay output (R1A, R1B, R1C): 2 ms
Relay output (R2A, R2C): 2 ms

minimum switching current
Relay output (R1, R2): 5 mA at 24 V DC

maximum switching current
Relay output (R1) on resistive load (cos phi = 1: 3 A at 250 V AC
Relay output (R1) on resistive load (cos phi = 1: 4 A at 30 V DC
Relay output (R1, R2) on inductive load (cos phi = 0.4: 2 A at 250 V AC
Relay output (R1, R2) on inductive load (cos phi = 0.4: 2 A at 30 V DC
Relay output (R2) on resistive load (cos phi = 1: 5 A at 250 V AC
Relay output (R2) on resistive load (cos phi = 1: 5 A at 30 V DC

specific application
Machinery

Variable speed drive application selection
Hoisting self erecting
Material handling carousel
Material handling conveyor
Material handling lifting platfrom
Material handling palletizers - medium performance
Material handling transfer table
Material handling turn table
Material working (wood, ceramic, stone, pvc, metal) cutting - medium accuracy
Material working (wood, ceramic, stone, pvc, metal) drilling
Material working (wood, ceramic, stone, pvc, metal) saw
Packaging bagging
Packaging feed conveyor low performance
Packaging filling bottles - intermittent operation
Packaging linear labeling
Packaging other application
Packaging stretching wrapping
Packaging tray take
Textile knitting
Textile printing machines
Textile spinning
Washing machines car
Washing machines other application
Hoisting standard crane - travelling or trolley

Motor power range
0...0.5 kW 200...240 V 1 phase

motor starter type
Variable speed drive


Environment of of Schneider ATV320U04M2C Variable Speed Drives ATV320 Altivar Machine
isolation
Between power and control terminals

insulation resistance
> 1 mOhm at 500 V DC for 1 minute to earth

power dissipation in W
32.2 W (fanless) at 200 V, 4 kHz

operating position
Vertical +/- 10 degree

electromagnetic compatibility
Conducted radio-frequency immunity test conforming to IEC 61000-4-6 level 3
Electrical fast transient/burst immunity test conforming to IEC 61000-4-4 level 4
Electrostatic discharge immunity test conforming to IEC 61000-4-2 level 3
Radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3 level 3
Voltage dips and interruptions immunity test conforming to IEC 61000-4-11
1.2/50 µs - 8/20 µs surge immunity test conforming to IEC 61000-4-5 level 3

pollution degree
2 conforming to EN/IEC 61800-5-1

vibration resistance
1.5 mm peak to peak (f = 2...13 Hz) conforming to EN/IEC 60068-2-6
1 gn (f = 13...200 Hz) conforming to EN/IEC 60068-2-6

shock resistance
15 gn during 11 ms conforming to EN/IEC 60068-2-27

relative humidity
5...95 % without condensation conforming to IEC 60068-2-3
5...95 % without dripping water conforming to IEC 60068-2-3

ambient air temperature for operation
-10...50 °C without derating
50...60 °C with derating factor

ambient air temperature for storage
-25...70 °C

operating altitude
<= 1000 m without derating
1000...3000 m with current derating 1 % per 100 m

standards
EN/IEC 61800-3
EN/IEC 61800-3 environment 1 category C2
EN/IEC 61800-5-1
IEC 60721-3
IEC 61508
IEC 13849-1

product certifications
RCM
UL
NOM 117
EAC
CSA

marking
CE


Offer Sustainability of Schneider ATV320U04M2C Variable Speed Drives ATV320 Altivar Machine
Sustainable offer status
Green Premium product

RoHS (date code: YYWW)
REACh
Product environmental profile
Product end of life instructions
