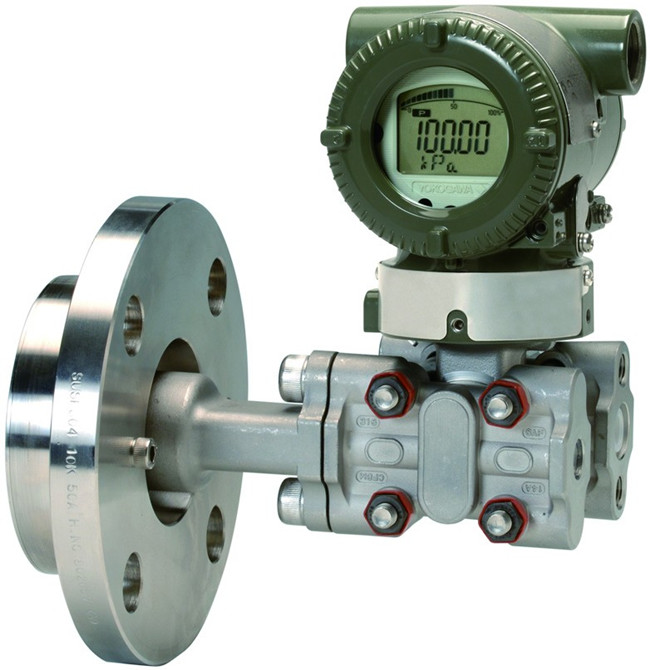

Yokogawa EJA118E-DMSCJ-912DB-EA14A1SE02-AB2A EJA118E Pressure Transmitter







Yokogawa EJA118E-DMSCJ-912DB-EA14A1SE02-AB2A EJA118E Pressure Transmitter



The EJA-E series of transmitters is Yokogawa's most recent evolution of the DPharp family. Released in 2012, it combines the ruggedness and success of the work-horse EJA-A series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa.



The EJA118E is a Differential Pressure Transmitter with remote diaphragm seals.



EJA118E features include:

·  ± 0.2% Accuracy

·  200 ms Response Time

·  Exida and TUV SIL2 / SIL3 Certified

·  Local Parameter Setting (LPS)

·  10-segment Signal Characterizer

·  Active Capillary Fill Fluid Density Compensation



General of Yokogawa EJA118E-DMSCJ-912DB-EA14A1SE02-AB2A EJA118E Pressure Transmitter


Diaphragm seals are used to prevent process medium form entering directly into the pressure-sensing assembly of the differential pressure transmitter, they are connected to the transmitter using capillaries filled with fill fluid.



EJA118E Diaphragm Sealed Differential Pressure Transmitters can be used to measure liquid, gas,

or steam flow, as well as liquid level, density, and pressure. EJA118E outputs a 4 to 20 mA DC signal corresponding to the measured differential pressure. Its highly accurate and stable sensor can also measure the static pressure which can be shown on the integral indicator or remotely monitored via BRAIN or HART communications. Other key features include quick response, remote set-up using communications, and self-diagnostics.



FOUNDATION Fieldbus, PROFIBUS PA and 1 to 5 V DC with HART (Low Power) protocol types are also available. All EJA-E series models in their standard configuration, with the exception of the Fieldbus,PROFIBUS and Low Power types, are certified as complying with SIL 2 for safety requirement.



Features of Yokogawa EJA118E-DMSCJ-912DB-EA14A1SE02-AB2A EJA118E Pressure Transmitter



Excellent performance and stability  Yokogawa EJA118E-DMSCJ-912DB-EA14A1SE02-AB2A EJA118E Pressure Transmitter


The EJA series uses a silicon resonant sensor formed from monocrystal silicon, a perfect material which has no hysteresis in pressure or temperature changes. The sensor minimizes overpressure, temperature change, and static pressure effects, and thus offers unmatched long-term stability.



Compact and light-weight design  Yokogawa EJA118E-DMSCJ-912DB-EA14A1SE02-AB2A EJA118E Pressure Transmitter


Half the weight of conventional models thanks to miniaturization of the casing with the amplifier ASIC, pressure cell structure, and flange. The ASIC uses the minimum number of parts and improves the reliability of the amplifier.



Fieldbus communication capability   Yokogawa EJA118E-DMSCJ-912DB-EA14A1SE02-AB2A EJA118E Pressure Transmitter


Fieldbus is a digital two-way communication system. It is a revolutionary technology for configuring instrumentation control systems and a promising successor to the standard 4 to 20 mA analog communication used in most field instruments today.



EJA series offers two types of fieldbus models, FOUNDATION™ fieldbus Low Voltage Mode and PROFIBUS PA devices, which ensure interoperability between Yokogawa and other manufactures. As for software, the EJA series incorporates two AI function blocks that compute differential and static pressures to allow flexible configuration of instrumentation.



Specification of Yokogawa EJA118E-DMSCJ-912DB-EA14A1SE02-AB2A EJA118E Pressure Transmitter




EJA118W / EJA118N / EJA118Y Diaphragm Sealed Differential Pressure Transmitters

M Capsule

H Capsule

Range

-100 to 100 kPa (-400 to 400 inH2O)

-500 to 500 kPa (-2000 to 2000 inH2O)

Span

2.5 to 100 kPa (10 to 400 inH2O)

25 to 500 kPa (100 to 2000 inH2O)

Accuracy

±0.2%

±0.2%

Degrees of protection

IP67, NEMA 4X, and JIS C0920 immersion proof

Certificates

FM, CENELEC ATEX, CSA, TIIS, IECEx

Output

4 to 20 mA DC or FOUNDATION™ fieldbus or PROFIBUS PA 2-wire system with digital communication

Supply voltage

BRAIN and HART:10.5 to 42 V DC (10.5 to 30 V DC for Intrinsically safe type) Fieldbus:9 to 32 V DC (9 to 24 V DC for Entity model and 9 to 17.5 V DC for FISCO model)

Ambient temperature

-40 to 60 deg C (-40 to 140 deg F) (general use type) -30 to 60 deg C (-22 to 140 deg F) (with integral indicator) It must be within the fill fluid operating temprature range

Process temperature

-50 to 300 deg C (-58 to 572 deg F) It must be within the fill fluid operating temprature range

Maximum working pressure

Flange rating pressure

Mounting

Transmitter: 2-inch pipe mounting Diaphragm seals: flange mounting

Diaphragm material

SUS316L, Hastelloy C-276, Tantalum, Titanium

Process flange material

S25C, SUS304, SUS316

Housing

Cast aluminum alloy or SUS316 equivalent stainless steel (optional)



Yokogawa EJA118E-DMSCJ-912DB-EA14A1SE02-AB2A EJA118E Pressure Transmitter
