Hirschmann RS20-0800M2M2SDAEHH01 RS20 RS30 RS40 Rail Etherne

description:Hirschmann RS20-0800M2M2SDAEHH01 RS20 RS30 RS40 Rail Ethernet Switches...
BASIC INFO

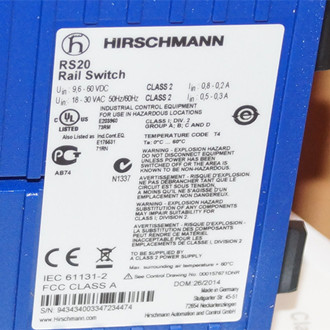

Hirschmann RS20-0800M2M2SDAEHH01 RS20 RS30 RS40 Rail Ethernet Switches






Description of Hirschmann RS20-0800M2M2SDAEHH01 RS20 RS30 RS40 Rail Ethernet Switches


Hirschmann RS20-0800M2M2SDAE Industrial Ethernet Switch, 6 x 10/100Base-TX, RJ45 and 2 x 100Base-FX Multimode Fiber, SC, 9.6 - 60 VDC Powered, 0 to 60 deg C, Class 1 Div. II Rated, Enhanced Management

Port type and quantity
•  2 x 100BASE-FX, MM-SC
•  6 x 10/100 BASE TX, RJ45


Overview of Hirschmann RS20-0800M2M2SDAEHH01 RS20 RS30 RS40 Rail Ethernet Switches

This Series allows users to choose either a compact or modular switch, as well as specify port density, back bone type, speed, temperature ratings, conformal coating, and various industry standards. Both compact and modular platforms offer redundant power inputs and fault relay (triggerable by loss of power and/or port-link). Only the managed version offers media/ring redundancy, multicast filtering/IGMP snooping, VLAN, port mirroring, network diagnostics and port control.

A compact platform that permits up to 24-ports in a mere 4.5 inches of a DIN rail. All ports are 100 Mbps max.


Hirschmann RS20-0800M2M2SDAE Industrial Ethernet Switch, 6 x 10/100Base-TX, RJ45 and 2 x 100Base-FX Multimode Fiber, SC, 9.6 - 60 VDC Powered, 0 to 60 deg C, Class 1 Div. II Rated, Enhanced Management




Benefits of Hirschmann RS20-0800M2M2SDAEHH01 RS20 RS30 RS40 Rail Ethernet Switches

  • Customized switches for the same price as standard devices
  • Vast portfolio that lets you customize products and configurations to your operation
  • Consistent and reliable performance for maximum uptime
  • Satisfies a broad range of application scenarios with industry-specific certifications
  • High data security with multiple security mechanisms


 Features of Hirschmann RS20-0800M2M2SDAEHH01 RS20 RS30 RS40 Rail Ethernet Switches
  • Versions with 4 to 26 Fast Ethernet ports with optional 2 Gigabit ports or 9 Gigabit Ethernet ports
  • Extended operating temperature range from -40°C to +70°C
  • High resistance to shocks, vibrations and EMC
  • Redundant 12 - 48 V power supply
  • Compact DIN rail metal or plastic housing for space-saving installation
  • Layer 2 Enhanced and Professional Software
  • PROFINET and EtherNet/IP options
  •
Hirschmann RS20-0800M2M2SDAEHH01 RS20 RS30 RS40 Rail Ethernet Switches

Product Family Type Mounting Port Type & Configuration
RS20 Fast Ethernet Managed DIN Rail 4 - 25 Fast Ethernet Ports

1, 2, or 3 Fiber Ports

Singlemode/Multimode

PoE
RS30 Fast/Gigabit Ethernet Managed Din Rail  8, 16 - 24 Fast Ethernet Ports

2 x Gigabit Ports with Twisted Pair RJ45 or SFP Slots

Singlemode/Multimode

PoE
RS40 Full Gigabit Ethernet Managed Din Rail  9 Gigabit Ports

5 x Twisted Pair RJ45

4 x Combo Twisted Pair RJ45/SFP




























Specification of Hirschmann RS20-0800M2M2SDAEHH01 RS20 RS30 RS40 Rail Ethernet Switches



Accessory Type : Ethernet Switch
For Use With : RS20, RS22
Mounting Type : DIN Rail
Number of Ports : 8
Port, Type : (6) x RJ45, (2) x SC
Primary Type : Ethernet Switch
Protocol Type : 10/100 Mbit/s Ethernet
Series : RS20 Series
Special Features : Store & Forward Switching
Supply Voltage : 12/24 V, 24 VAC, 48 VDC
Type : Compact Switch

Product Features of Hirschmann RS20-0800M2M2SDAEHH01 RS20 RS30 RS40 Rail Ethernet Switches



  • Fast and simple selection of features using the web configurator and drop-down lists
  • Versions with 4 to 25 Fast Ethernet ports
  • Convenient configuration and diagnostics thanks to comprehensive management functions (serial interface, web interface, SNMP V1/V2, HiVision File Transfer, SW, HTTP/TFTP, LLDP-MED)
  • High network availability owing to fast redundancy protocols (HIPER Ring, MRP, MSTP, RSTP-IEEE802.1D-2004, MRP and RSTP in parallel, Link Aggregation
  • High data security thanks to numerous security mechanisms (IP and MAC Port Security, SNMP V3, SSHv2, Authentication (IEEE802.1x), 802.1x Multi Client Authentication, Guest VLAN and Unauthenticated VLAN, Port based Radius VLAN Assignment, Login Banner)



Applications of Hirschmann RS20-0800M2M2SDAEHH01 RS20 RS30 RS40 Rail Ethernet Switches



In the automation area, the demands made on data communication via Ethernet differ widely from application to application. They range from simple installations to complex, high-performance networks with comprehensive management functions and extremely high failure tolerance. The OpenRail RS20 is the perfect switch for so many different application scenarios and is ideal for machine and plant engineering where Ethernet is becoming the communications protocol.

In addition, the OpenRail RS20 family has the required certifications for power transmission and distribution, oil and gas and transportation applications.


Ordering Models
of
Hirschmann RS20-0800M2M2SDAEHH01 RS20 RS30 RS40 Rail Ethernet Switches


RS20-0400T1T1SDAE
RS20-0400T1T1SDAP
RS20-0400M2T1SDAE
RS20-0400M2T1SDAP
RS20-0400M2M2SDAE
RS20-0400M2M2SDAP
RS20-0800T1T1SDAE
RS20-0800T1T1SDAP
RS20-0800M2M2SDAE
RS20-0800M2M2SDAP
RS20-0800M2M2SDHE
RS20-0800M4M4SDAE
RS20-0800M4M4SDAP
RS20-0800M4M4SDHP
RS20-1600M2T1SDAE
RS20-1600M2T1SDAP
RS20-1600M2M2SDAE
RS20-1600M2M2SDAP
RS20-1600T1T1SDAE
RS20-1600T1T1SDAP
RS20-2400M2M2SDAE
RS20-2400M2M2SDAP
RS20-2400T1T1SDAE
RS20-2400T1T1SDAP
OCTOPUS 16M-2FX
OCTOPUS 24M-2FX


Hirschmann RS20-0800M2M2SDAEHH01 RS20 RS30 RS40 Rail Ethernet Switches

RS20-0400T1T1SDAE
RS20-0400T1T1SDAP
RS20-0400M2T1SDAE
RS20-0400M2T1SDAP
RS20-0400M2M2SDAE
RS20-0400M2M2SDAP
RS20-0800T1T1SDAE
RS20-0800T1T1SDAP
RS20-0800M2M2SDAE
RS20-0800M2M2SDAP


Hirschmann RS20-0800M2M2SDAEHH01 RS20 RS30 RS40 Rail Ethernet Switches

RS20-1600M2T1SDAP
RS20-1600M2M2SDAE
RS20-1600M2M2SDAP
RS20-1600T1T1SDAE
RS20-1600T1T1SDAP
RS20-2400M2M2SDAE
RS20-2400M2M2SDAP
RS20-2400T1T1SDAE
RS20-2400T1T1SDAP
OCTOPUS 16M-2FX
OCTOPUS 24M-2FX




Hirschmann RS20-0800M2M2SDAEHH01 RS20 RS30 RS40 Rail Ethernet Switches

RS20-0400T1T1SDAEHC
RS20-0400T1T1SDAPHC
RS20-0800T1T1SDAEHC
RS20-0800T1T1SDAPHC
RS20-1600T1T1SDAEHC
RS20-1600T1T1SDAPHC
RS20-2400T1T1SDAEHC
RS20-2400T1T1SDAPHC

Hirschmann RS20-0800M2M2SDAEHH01 RS20 RS30 RS40 Rail Ethernet Switches

RS20-0400M2T1SDAEHC
RS20-0400M2T1SDAPHC
RS20-0400M2M2SDAEHC
RS20-0400M2M2SDAPHC
RS20-0800M2M2SDAEHC
RS20-0800M2M2SDAPHC
RS20-0800M4M4SDAEHC
RS20-0800M4M4SDAPHC
RS20-1600M2T1SDAEHC
RS20-1600M2T1SDAPHC
RS20-1600M2M2SDAEHC
RS20-1600M2M2SDAPHC
RS20-2400M2M2SDAEHC
RS20-2400M2M2SDAPHC


Hirschmann RS20-0800M2M2SDAEHH01 RS20 RS30 RS40 Rail Ethernet Switches

RS20-0400S2T1SDAEHC
RS20-0400S2T1SDAPHC
RS20-0400S2S2SDAEHC
RS20-0400S2S2SDAPHC
RS20-0800S2S2SDAEHC
RS20-0800S2S2SDAPHC
RS20-1600S2S2SDAEHC
RS20-1600S2S2SDAPHC
RS20-2400S2S2SDAEHC
RS20-2400S2S2SDAPHC
