Honeywell Lumidor Minimax X4 Disposable Multi Gas Detectors

description:Honeywell Lumidor Minimax X4 Disposable Multi Gas Detectors Portable...
BASIC INFO

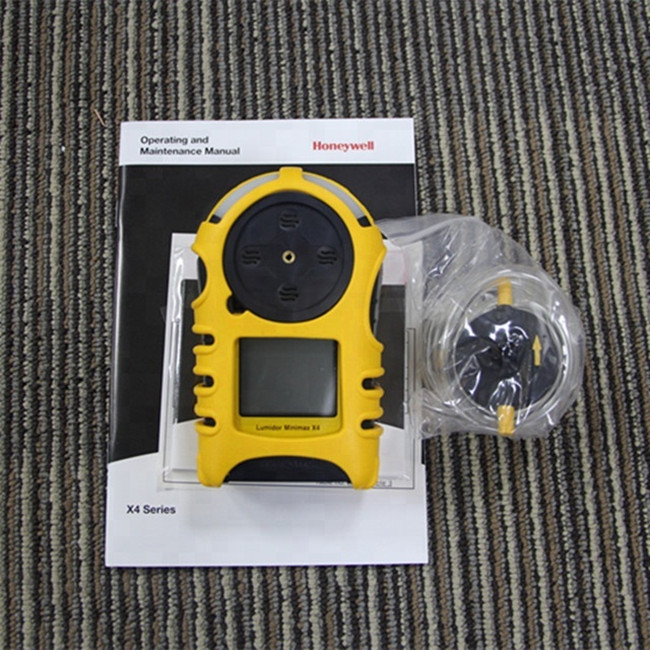

Honeywell Lumidor Minimax X4 Disposable Multi Gas Detectors Portable



General of Honeywell Lumidor Minimax X4 Disposable Multi Gas Detectors Portable

The Honeywell Lumidor Minimax X4 gas detector is ideal for use by companies wanting advanced performance, reliability, and ease of use without high costs of long term maintenance. Everything that a user routinely has to do can be achieved with a single button press. Keeping it simple reduces training requirements and enables use in a wider range of industries.

Ease of use doesn't mean basic functionality. For example, every Honeywell Lumidor Minimax X4 gas detector has the capability to log data using a simple-to-fit memory card. Events, gas data, and the calibration history are all stored, and the free software enables you to graph or print reports at the press of a button.

Convenience and the way users want to work are important considerations. When the Honeywell Lumidor Minimax X4 gas detector is clipped to the belt or harness, users may want the reassurance of being able to view the display from different positions. But with many other units, the display is upside down forcing the user to remove the unit to look at the display, perhaps creating a hazard. With the Honeywell Lumidor Minimax X4 gas detector, users can "flip" the display at the press of a button for that added convenience and safety.

With an ultra clear backlit display and powerful vibrating audiovisual alarms, the Honeywell Lumidor Minimax X4 gas detector demands attention when gas hazards are detected in even the most adverse working conditions. All in all, the Honeywell Lumidor Minimax X4 gas detector offers reliable and easy to use gas detection to keep you safe.

Kit Options for Honeywell Lumidor Minimax X4 Disposable Multi Gas Detectors Portable

Honeywell Lumidor Minimax-4-OFCHK Kit

  • UL/CSA certified
  • 4-gas portable detector
  • Oxygen, Flammable, Carbon Monoxide & Hydrogen Sulfide sensors
  • Universal AC battery charger cradle and rechargeable NiMH battery pack
  • CD with X4 data logging and reporting PC software (memory card HW-2566-0435 must be purchased separately to utilize the data logging feature)

Honeywell Lumidor Minimax-4-OFCH

  • UL/CSA certified
  • 4-gas portable detector
  • Oxygen, Flammable, Carbon Monoxide & Hydrogen Sulfide sensors



All Honeywell Lumidor Minimax X4 gas detectors are shipped complete with a quick start guide, user manual, 2 batteries, flow adaptor, crocodile clip, protective rubber boot, tubing for calibration, and calibration certificate.

Features of Honeywell Lumidor Minimax X4 Disposable Multi Gas Detectors Portable

  • Rugged user friendly design
  • Data and event logging capabilities
  • User configurable via menu
  • Ultra clear backlit display
  • Continuous reading of gas levels
  • TWA/STEL and two instantaneous alarm levels with peak hold facility
  • Audible, visual and vibratory alarms suppied as standard
  • Individual gas sensors can be deactivated if not needed
  • Full 2 year warranty
Tough Durable Housing of Honeywell Lumidor Minimax X4 Disposable Multi Gas Detectors Portable

• Small and lightweight

• Rugged, impact and weather resistant

• Includes crocodile clip - clips

• anywhere to prevent accidental loss


Easy to Use of Honeywell Lumidor Minimax X4 Disposable Multi Gas Detectors Portable

• Works straight out of the box

• Single button on/off operation

• Intuitive icons suitable for all languages

• User configurable via menu

• Interactive product training guide available


Ultra Clear Backlit Display  of Honeywell Lumidor Minimax X4 Disposable Multi Gas Detectors Portable

• Unique ‘flip display’ at the press of a button

• Continuous reading of gas levels

• TWA/STEL and two instantaneous alarm levels with peak hold facility

• Battery life, calibration and self-test status



Effective Gas Alarm Indication  of Honeywell Lumidor Minimax X4 Disposable Multi Gas Detectors Portable

• Alarm and backlight combine to demand attention

• Distinctive loud two-tone audible alarm

• Vibrating alarm supplied as standard


Reliable Operation  of Honeywell Lumidor Minimax X4 Disposable Multi Gas Detectors Portable

• Self-test on start up or on demand checks display, battery, sensor, audiovisual and vibrating alarms

• Uses patented SureCellTM sensor technology and ReflexTM cell check technique

• Includes TempraSURETM thermal compensation and shock protection

• Periodic flash and/or beep for increased confidence (user configurable)


Unsurpassed RFI Performance  of Honeywell Lumidor Minimax X4 Disposable Multi Gas Detectors Portable

• Can be used alongside walkie-talkies or cell phones

• Exceeds the toughest industrial standards for RFI immunity


Cost Effective  of Honeywell Lumidor Minimax X4 Disposable Multi Gas Detectors Portable

• Fully inclusive 2 year warranty

• Minimum 2 year sensor life

• Initial and on-going running costs minimized

• Available in 1, 2, 3 or 4 gas versions



Honeywell Lumidor Minimax X4 Disposable Multi Gas Detectors Portable

Minimax X4 is an unsurpassed portable gas detector for protection against flammable, oxygen, carbon monoxide and hydrogen sulfide gas hazards. It’s ideal for use by those companies wanting advanced performance, reliability and ease of use without high costs of long term maintenance.

Minimax X4 focuses on ease of use by offering only the functionality required to comply with legislation. Everything that a user ROUTINELY HAS TO DO can be achieved with a single button press! Keeping it simple reduces training requirements and enables use in a wider range of industries.

Ease of use doesn’t mean basic functionality. For example, every instrument has the capability to log data using a simple to fit memory card (the type you get in a digital camera). Events, gas data and the calibration history are all stored and the free software downloaded from our web site enables you to graph or print reports at the press of a button.

Convenience and the way users want to work is an important consideration. When clipped to the belt or harness users may want the re-assurance of being able to view the display from different positions. But with many other units the display is upside down forcing the user to remove the unit to look at the display, perhaps creating a hazard. With the Minimax X4 users can ‘flip’ the display at the press of a button for that added convenience and safety.

With an ultra clear backlit display, vibrating and powerful audiovisual alarms, the Minimax X4 demands attention when gas hazards are detected in even the most adverse working conditions. All in all, Minimax X4 offers reliable, easy to use gas detection to keep you safe.


Honeywell Lumidor Minimax X4 Disposable Multi Gas Detectors Portable


Standard Specification

General: R eusable multi-gas detector for personal protection against flammable, toxic and oxygen gas hazards. Supplied complete with calibration certificate, quick start guide, alkaline batteries (2), tubing, flow adaptor, crocodile clip, and manual.


 Honeywell Lumidor Minimax X4 Disposable Multi Gas Detectors Portable

Gases                            Detected Range   Level 1         Level 2            STEL            TWA

Flammable (Exp)             0 to 100% LEL*     10% LEL        20% LEL             n/a               n/a

Oxygen (O2 )                  0 to 30% vol         23.5% vol      19.5% vol            n/a              n/a

Carbon Monoxide (CO)     0 to 999 ppm        35 ppm          100 ppm          100 ppm        35 ppm

Hydrogen Sulfide (H2 S)   0 to 250 ppm        10 ppm          15 ppm             15 ppm        10 ppm

* Flammable channel can display gas concentration in %vol units for a range of flammable gases. # User configurable.

Honeywell Lumidor Minimax X4 Disposable Multi Gas Detectors Portable

Sensors

P atented Surecel TM electrochemical and catalytic bead sensing technology for stable and reliable performance in all industrial environments

Diagnostics

Self-test of circuitry, battery, LCD, and sensors on start up or on demand. Patented Reflex TM cell check techniques included as standard for toxic channels.

Display

ltra clear icon driven backlit LCDdisplays gas level and detector status. Unique ‘flipdisplay’ function at the press of a button for added user convenience. High/Low Peak hold facility included with user clear. Time and date

User Interface

Intuitive three button operation for detector configuration.

Audible Alarm

90 db @ 30 cm

Visual Alarm

High intensity red LEDs combined with red backlight for maximum effect.

Vibrating Alarm

Supplied as standard.

Operating Temperature

-20°C to +50°C (-4°F to +122°F). TempraSURETM temperature compensation.

Humidity

5-95% RH (non-condensing)

IP Rating

Ingress protection to IP65.

Approvals

N orthAmerica: Class I, Div 1, Groups A, B, C, DT4. Europe: ATEX II 2GEEx ia d IIC T4. (specific version only) Canada: certified to CSA C 22.2-152 and CSA C22.2

RFI/EMC

CE EN50270:1999 and EN55011.

Sensor Life

Minimum of 2 years backed by inclusive 2 year warranty

Battery Life

4-16 hours with 2 xAAAlkaline batteries. 12 hours of operation per charge, minimum, with rechargeable NiMHbatteries. Low power audiovisual warning.

Dimensions

124 mm(H) X 76 mm(W) X 36 mm(D)

Weight

210 g (without batteries), 258 g (with batteries)

Warranty

2 years



Honeywell Lumidor Minimax X4 Disposable Multi Gas Detectors Portable

Minimax X4 focuses on ease of use by offering only the functionality required to comply with legislation. Everything that a user ROUTINELY HAS TO DO can be achieved with a single button press! Keeping it simple reduces training requirements and enables use in a wider range of industries. Ease of use doesn’t mean basic functionality. For example, every instrument has the capability to log data using a simple to fit memory card (the type you get in a digital camera). Events, gas data and the calibration history are all stored and the free software downloaded from our web site enables you to graph or print reports at the press of a button. Convenience and the way users want to work is an important consideration. When clipped to the belt or harness users may want the re-assurance of being able to view the display from different positions. But with many other units the display is upside down forcing the user to remove the unit to look at the display, perhaps creating a hazard. With the Minimax X4 users can ‘flip’ the display at the press of a button for that added convenience and safety. With an ultra clear backlit display, vibrating and powerful audiovisual alarms, the Minimax X4 demands attention when gas hazards are detected in even the most adverse working conditions. All in all, Minimax X4 offers reliable, easy to use gas detection to keep you safe.


Honeywell Lumidor Minimax X4 Disposable Multi Gas Detectors Portable

1. Instrument Order Number
Special Kit Price Package
UL/CSA certified Minimax X4 4-gas detector portable with Oxygen, Flammable, Carbon Monoxide & Hydrogen Sulfide sensors with universal AC battery charger cradle and rechargeable NiMH battery pack and CD with X4 data logging and reporting PC software.   Minimax-4-OFCHK
Instrument Prices
UL/CSA Certified Minimax X4 4-gas detector portable with Oxygen, Flammable, Carbon Monoxide & Hydrogen Sulfide sensors Minimax-4-OFCH

2. Standard Accessories (included with each instrument as standard) Order Number
Pack of 2 x Alkaline battery (1.5V AA) Energizer E91 or EN91.  2566-0433
Flow adapter (yellow and black) Lumidor version 2566-0426L
Tubing (45cm/18") 2566-0443
Minimax X4 Crocodile Clip Kit 2566K0130
Protective Rubber Boot (yellow) Lumidor version 2566-0445

3. Optional Accessories  Order Number

Hand Aspirator Kit incl In-Line Filter and 10m sample tube 2566-0446
10m (30’) Sample Tube incl In-Line adapter 2302B0828
   2302B0846
1m (3') 4 Part Sampling Probe 2302B0847
Field Case 2566-0429
Belt Clip Metal 2566-0428
Tubing PU 6mm IDx9mm OD 2m Bagged 402-190-120
10m (30’) Sample Tubing with Ball Float 2566-0427
Spare Memory Card for Data Logging 2566-0435
In-Line Filter Pack of 10 2302B0845
Additional universal AC power adapter, battery charger cradle and rechargeable NiMH battery pack for the Minimax X4 2566-0481
Replacement rechargeable NiMH battery pack for the Minimax X4 portable gas detector Lumidor (black) 2566-0482
12V DC in vehicle charger for use with universal battery charger cradle 2566-0471

4. Calibration & Test Equipment Order Number
Gas Bottle Regulator (0.3l/min) Preset Flow Rate 235-285-085
Cylinder recycling toolkit renders cylinder safe for return transport GFV4250
