Fluke 805 Portable FC Vibrometer Fluke 805 FC Digital Vibrat

description:Fluke 805 Portable FC Vibrometer Fluke 805 FC Digital Vibration Meter In Stock...
BASIC INFO

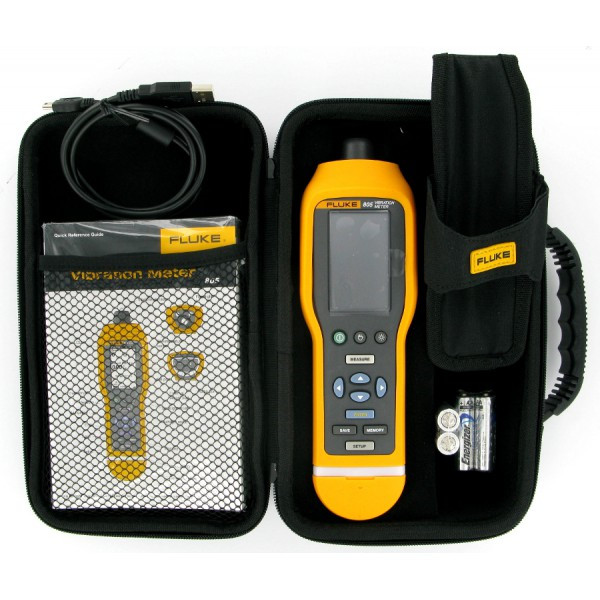

Fluke 805 Portable FC Vibrometer Fluke 805 FC Digital Vibration Meter In Stock






Fluke 805 Portable FC Vibrometer Fluke 805 FC Digital Vibration Meter In Stock


The Fluke 805 Vibration Meter is reliable, repeatable and accurate way to check bearings and overall vibration. Make go or no-go maintenance decisions with confidence. The Fluke 805 Vibration Meter is the most reliable vibration screening device available.


Product overview: Fluke 805 Portable FC Vibrometer Fluke 805 FC Digital Vibration Meter In Stock

The reliable, repeatable, accurate way to check bearings and machine health

Make go or no-go maintenance decisions with confidence. The Fluke 805 FC Vibration Meter is the most reliable vibration screening device available for frontline mechanical troubleshooting teams that need repeatable, severity-scaled readings of overall vibration, bearing health and machine health.

Manage and monitor workflow for better maintenance results

Using the Fluke Connect Mobile App it’s now easier than ever to manage your vibration screening workflow. Integrated machine profile functionality allows you to setup machine profiles using the app and then push them directly to your 805 FC Vibration Meter. Users can then use the list of machine profiles to create work orders, and develop route based maintenance schedules which can be dynamically sent to technicians in field, helping to ensure the proper focus on critical assets. Once a machine is tested, the 805 FC communicates the results directly to the app and associates them with the proper profile and route. This data can easily be shared between teams, so you can make better maintenance decisions.

Other useful features: Fluke 805 Portable FC Vibrometer Fluke 805 FC Digital Vibration Meter In Stock

* Reliable, repeatable, accurate device for checking bearings and overall vibration
* Features innovative sensor design that minimizes measurement variations caused by device angle or contact pressure
* Provides consistent data quality at both low and high frequency ranges
* Offers four-level severity scale to assess urgency of problems and bearing condition
* Allows you to export data via USB or wirelessly, through the Fluke Connect® mobile app
* Compatible with Fluke Connect® Mobile App that can transmit measurements to your smartphone to be shared in real time
* Enables you to get authorization to take next steps in an instant if machine health is at risk via Fluke Connect™ mobile app*
* Allows you to view trending in Microsoft® Excel using pre-built templates
* Measures overall vibration (10 Hz to 1,000 Hz) for acceleration, velocity, and displacement units of measurement for a wide variety of machines
* Provides Crest Factor+ technology for reliable bearing assessment using direct sensor tip measurements between 4,000 Hz and 20,000 Hz
* Compares vibration levels with ISO-10816 severity scales and stores results to the Fluke Connect Cloud
* Features colored lighting system (green, red) and on-screen comments to indicate how much pressure needs to be applied to take measurements
* Measures temperature with Spot IR Sensor to increase diagnostic capabilities
* Holds and saves up to 3,500 measurements in on-board memory
* External accelerometer (optional) support for hard to reach locations
* Features built-in flashlight for viewing measurement locations in dark areas
* Provides large high-resolution display for easy navigation and viewing



Key features of Fluke 805 Portable FC Vibrometer Fluke 805 FC Digital Vibration Meter In Stock

* EASY SETUP
* Quickly create asset list and work order on your PC, setup machine profiles using Fluke Connect App on your smart device, push routes to your 805 FC for your technicians in the field.
* CONSISTENT DATA QUALITY
* Take accurate, reliable measurements at both low and high frequency ranges
* MOBILE DATA ACCESS
* Store results in the cloud and share data with your team remotely
* INNOVATIVE SENSOR DESIGN
* Minimize measurement variations caused by device angle or contact pressure



Use the 805 to check the following machine categories: Fluke 805 Portable FC Vibrometer Fluke 805 FC Digital Vibration Meter In Stock

  • Chillers (refrigeration)
  • Fans
  • Cooling tower drives
  • Centrifugal pumps
  • Positive displacement pumps
  • Air compressors
  • Blowers
  • Generic gearboxes (rolling element bearings)
  • Machine tools (motor, gearboxes, spindles, etc.)



Vibration Meter of Fluke 805 Portable FC Vibrometer Fluke 805 FC Digital Vibration Meter In Stock

Low frequency range (overall measurement)

10 Hz to 1,000 Hz

High frequency range (CF+ measurement)

4,000 Hz to 20,000 Hz

Severity levels

Good, satisfactory, unsatisfactory, unacceptable

Vibration limit

50 g peak (100 g peak-peak)

A/D converter

16-bit

Signal to noise ratio

80 dB

Sampling rate

Low frequency

20,000 Hz

High frequency

80,000 Hz

Real time clock backup

Coin battery

Sensor of Fluke 805 Portable FC Vibrometer Fluke 805 FC Digital Vibration Meter In Stock

Sensitivity

100 mV g ±10%

Measurement range

0.01 g to 50 g

Low frequency range (overall measurement)

10 Hz to 1,000 Hz

High frequency range

4,000 Hz to 20,000 Hz

Resolution

0.01 g

Accuracy

At 100 Hz ±5% of measured value

Amplitude Units of Fluke 805 Portable FC Vibrometer Fluke 805 FC Digital Vibration Meter In Stock

Acceleration

g, m/sec²

Velocity

in/sec, mm/sec

Displacement

mils, mm

Infrared Thermometer (Temperature Measurement) of Fluke 805 Portable FC Vibrometer Fluke 805 FC Digital Vibration Meter In Stock

Range

-20°C to 200°C (-4°F to 392°F)

Accuracy

±2°C (4°F)

Focal length

Fixed, at ~3.8 cm (1.5 in)

External sensor of Fluke 805 Portable FC Vibrometer Fluke 805 FC Digital Vibration Meter In Stock

Fluke supports but does not provide external sensors

Frequency range

10 Hz to 1,000 Hz

Bias voltage (to supply power)

20 VDC to 22 VDC

Bias current (to supply power)

Maximum 5 mA

Firmware of Fluke 805 Portable FC Vibrometer Fluke 805 FC Digital Vibration Meter In Stock

External interfaces

USB 2.0 (full speed) communication

Data capacity

Database on internal flash memory

Upgrade

Through USB

Memory

Up to 3,500 measurements

Radiated Emission of Fluke 805 Portable FC Vibrometer Fluke 805 FC Digital Vibration Meter In Stock

Electrostatic discharge: burst

Standard EN 61000-4-2

Electromagnetic interference

Standard EN 61000-4-3

RE

Standard CISPR 11, Class A

Environmental of Fluke 805 Portable FC Vibrometer Fluke 805 FC Digital Vibration Meter In Stock

Operating temperature

-20°C to 50°C (-4°F to 122°F)

Storage temperature

-30°C to 80°C (-22°F to 176°F)

Operating humidity

10% to 95% RH (non-condensing)

Operating/storage altitude

Sea level to 3,048 meters (10,000 feet)

IP rating

IP54

Vibration limit

500 g peak

Drop test

1 meter

General Specifications of Fluke 805 Portable FC Vibrometer Fluke 805 FC Digital Vibration Meter In Stock

Battery type

AA (2) Lithium Iron Disulfide

Battery life

250 measurements

Size (L x W x H)

24.1 x 7.1 x 5.8 cm (9.5 x 2.8 x 2.3 in)

Weight

0.40 kg (0.89 lb)

Connectors

USB mini-B 7-pin, stereo audio output jack (3.5 mm Audio Plug),
