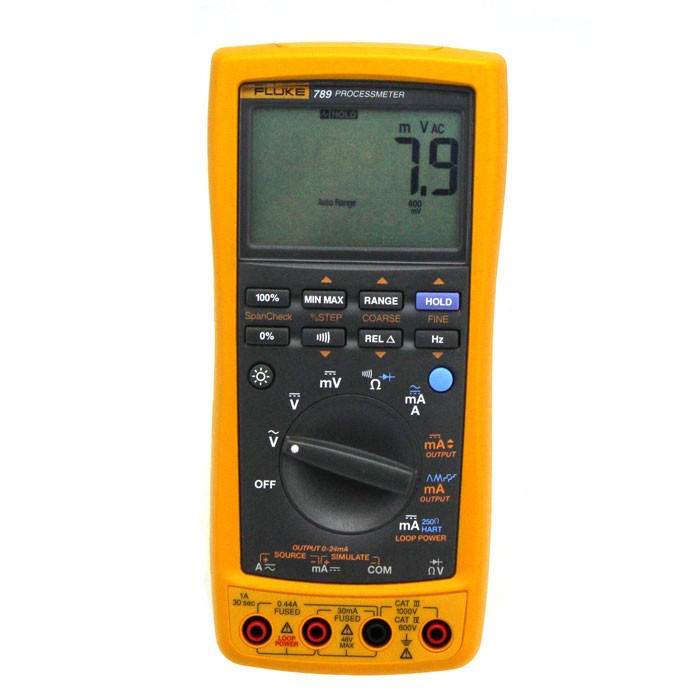

Fluke 789 FC ProcessMeter and Temperature Kit Fluke 789 Multi Function Calibrator





Fluke 789 FC ProcessMeter and Temperature Kit Fluke 789 Multi Function Calibrator

The Fluke 789 ProcessMeter is a troubleshooting tool which combines the functionality of a loop calibrator with the power of a digital multimeter. It has a built-in, selectable 250 Ω HART resistor which eliminates the need to carry a separate resistor.


Product overview: Fluke 789 FC ProcessMeter and Temperature Kit Fluke 789 Multi Function Calibrator

Fluke 789 ProcessMeter doubles your troubleshooting power and is Fluke Connect-enabled

The Fluke 789 ProcessMeter is the ultimate troubleshooting tool for electricians and instrumentation professionals. It combines the functionality of a loop calibrator with the power of a digital multimeter, and the wireless capabilities of Fluke Connect connectivity with optional IR3000FC module. The 789 has a display that's not only twice as large as the Fluke 787B, but also twice as bright with two levels of backlighting. And its built-in, selectable 250 ohm HART® resistor eliminates the need to carry a separate resistor.

The 789 also has a 24-Volt loop supply, which reduces the need to carry a separate power supply when doing offline transmitter testing. You can add an optional temperature measurement module and the wireless data logging capabilities of the Fluke Connect™ mobile app to log data wirelessly to your smart phone and review it from a remote location. So now process technicians can do a lot more while carrying a lot less.

Other useful features: Fluke 789 FC ProcessMeter and Temperature Kit Fluke 789 Multi Function Calibrator

Includes 0% and 100% buttons to toggle between 4 and 20 mA sourcing for a quick span check
Provides all standard DMM capabilities including frequency measurement to 20 kHz, Min/Max/Average/Hold/Relative modes, and diode test and continuity beeper
Simultaneous displays mA and % of scale readings
Provides 20 mA DC current source/loop calibrator/simulator
Offers manual step (100%, 25%, Coarse, Fine) plus auto step and auto ramp
Delivers 0.1% dc voltage accuracy and 0.05% dc current accuracy
Provides 1200 ohm drive capability on mA source
Offers HART mode setting with loop power and a built-in 250 ohm resistor



Offers externally accessible fuses and batteries for easy replacement


Features of Fluke 789 FC ProcessMeter and Temperature Kit Fluke 789 Multi Function Calibrator

  • 24 V Loop power supply
  • Very large dual display
  • Enhanced backlight with 2 brightness settings
  • 1200 Ohm drive capability on mA source
  • HART mode setting with loop power and a built-in 250 ohm resistor
  • 0% and 100 % buttons to toggle between 4 and 20 mA sourcing for a quick span check
  • Externally accessible fuses for easy replacement
  • Infrared-port to process data in FlukeView Forms (V2.1) software
  • Precision 1000 V, 440 mA True-RMS digital Multimeter
  • DMM designed to meet 1000 volt IEC 1010 CAT III standards
  • Frequency measurement to 20 kHz
  • Min/Max/Average/Hold/Relative modes
  • Diode Test and Continuity Beeper
  • Simultaneous mA and % of scale readout
  • 20 mA DC current source / loop calibrator / simulator
  • Manual Step (100%, 25%, Coarse, Fine) plus Auto Step and Auto Ramp
  • Externally accessible battery for easy battery changes
Technical Specification of Fluke 789 FC ProcessMeter and Temperature Kit Fluke 789 Multi Function Calibrator
DC Voltage Accuracy ±0.1% DC Current Accuracy ±0.05%
DC Voltage Digits +1 D DC Current Digits +2 D
DC Voltage Lowest Range 4V DC Current Lowest Range 30mA
DC Voltage Highest Range 1000V DC Current Highest Range 1A
DC Voltage Lowest Resolution 0.001V DC Current Lowest Resolution 1μA
AC Voltage Accuracy ±7% AC Current Accuracy ±1%
AC Voltage Digits +4 D AC Current Digits +2 D
AC Voltage Lowest Range 400mV AC Current Lowest Range -
AC Voltage Highest Range 1000V AC Current Highest Range 1A
AC Voltage Lowest Resolution 0.1mV AC Current Lowest Resolution 0.001A
AC Voltage Max Frequency 20kHz Resistance Accuracy ±0.2%
    Resistance Digits +2 D

Supplied with AC175 alligator clips, AA 1.5 V alkaline batteries (x4, installed), TL71 safety-designed test lead set

Specification of Fluke 789 FC ProcessMeter and Temperature Kit Fluke 789 Multi Function Calibrator

Attribute Value
Absolute Maximum Current Measurement 1A
Best Accuracy ±0.2 %
Resolution 1 mA
Safety Category CAT III 1000 V, CAT IV 600 V
Battery Type AA
Battery Life 140 h
Power Source Battery
Dimensions 203 x 100 x 50mm
Weight 610g
Height 50mm
Length 203mm
Maximum Operating Temperature +55°C
Minimum Operating Temperature -20°C
Safety Category Voltage 600 V, 1000 V
Model Number p 789
Width 100mm

AC175 alligator clips, AA 1.5 V alkaline batteries (x4, installed), TL71 safety-designed test lead set
